HEXAGON RDS RS5 Scanner Setup Recommendations - Red Laser

This page is for the RS5 red laser scanner.  For the AS1 blue laser scanner, see this page: https://advancedtubular.helpsite.com/articles/107808-hexagon-rds-as1-scanner-setup-recommendations

The following RDS RSx setup is recommended for using VTube-LASER with HEXAGON arms and the RS5 (red laser) scanners.

• 1 - Capture mode: "Keep button pressed"
• 2 - Scanning profile: Save a profile named "VTube" (Do this last - after you have set both 3 and 4.)
• 3 - Point sampling - Set it as low as possible.  The lower setting is still a lot of data from HEXAGON.
• 4 - Exposure mode: Auto

RS5

RS3

To make changes to the settings, you will need to enter Advanced mode.

1 - Click on the Standard button in the upper right corner.

2. Enter the password: Advanced

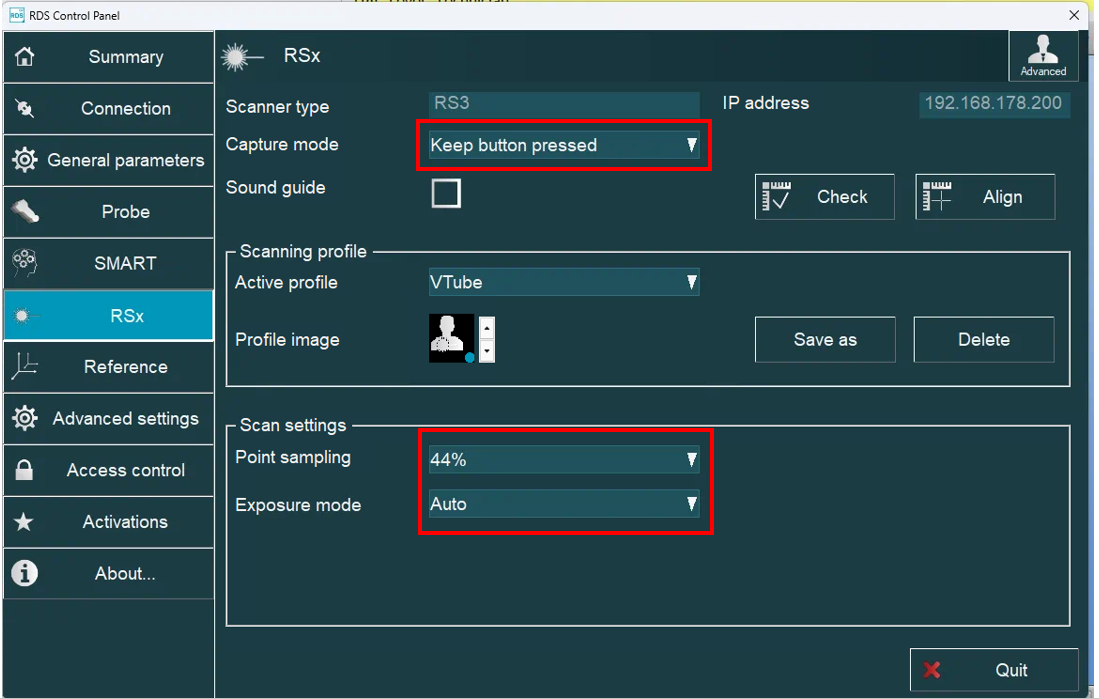

3. Make the changes to the values as shown in the first screen image above.

4. Save a new Profile (a laser configuration) called "VTube".

5. Press Save in the lower right.

6. Press Quit.

7. Be sure that the VTube scanning profile is used for scanning in VTube-LASER.

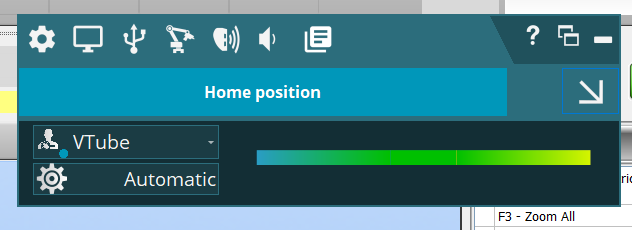

8. This shows the profile being used in a smaller popup window.
