VTube Screen Resolution Recommendations



Ideal Screen Resolution

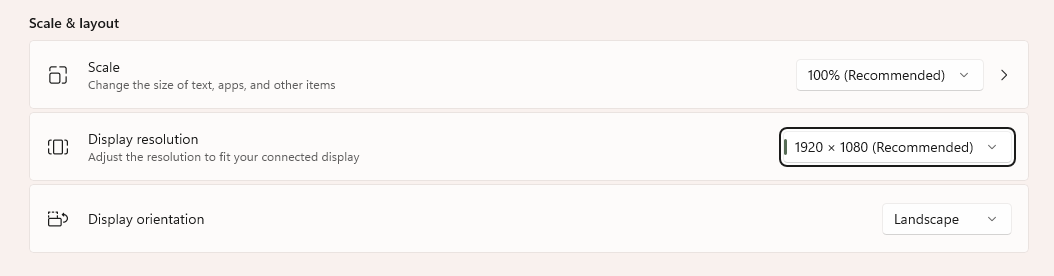

The minimum ideal screen resolution is 1920 x 1080.

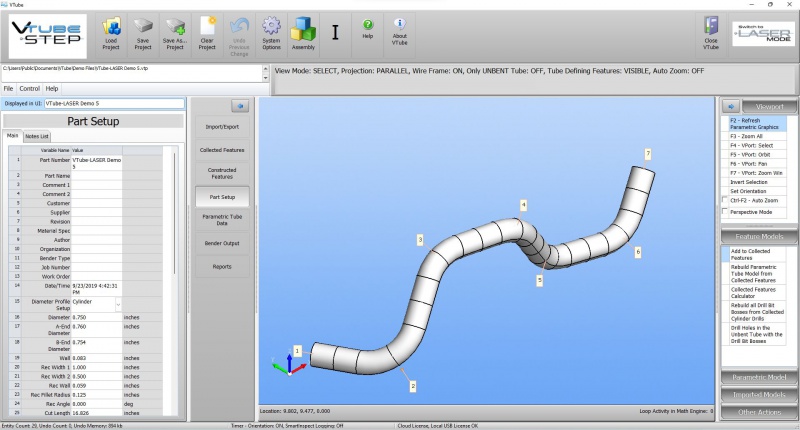

 This is an example of 1920 x 1080 resolution in VTube-STEP:

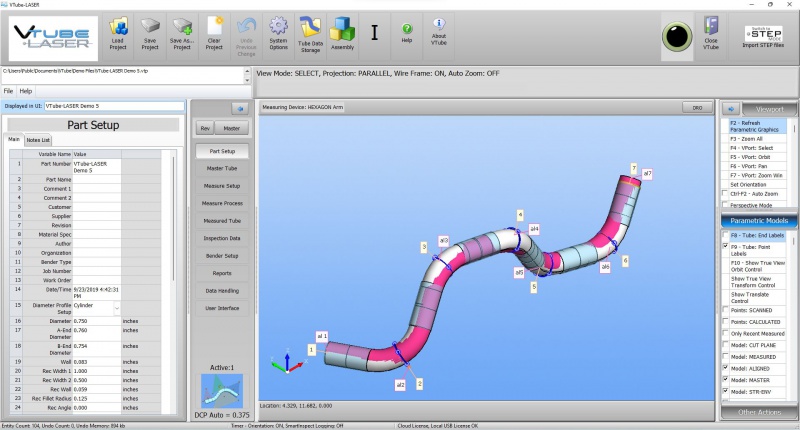

 This is an example of 1920 x 1080 resolution in VTube-LASER:




Screen Images at Different Resolutions

This is how VTube appears at various screen resolutions.

1920 x 1080 - Ideal (This is our development screen resolution.)

1680 x 1050

1600 x 900 - Menu Items are Below the Bottom

1440 x 900 - Menu Items are Below the Bottom

1366 x 768 - Menu Items are Below the Bottom

1280 x 1024

1280 x 760 - Menu Items are Below the Bottom

Monitor

MINIMUM: 27" Panel Monitor Recommended

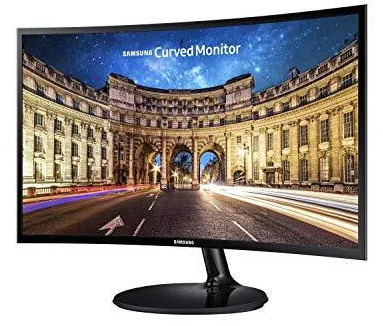

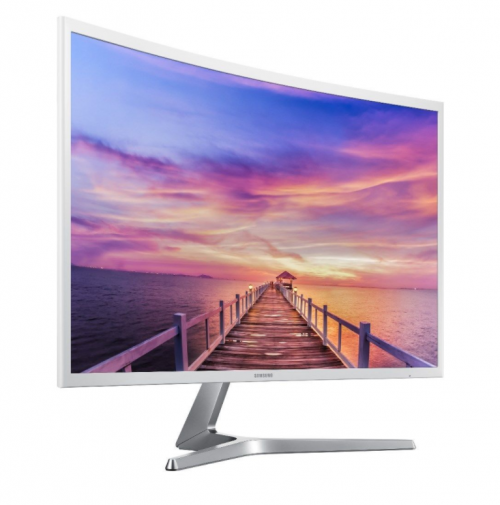

We recommend a minimum of 27" flat panel monitors like the Samsung shown on the right.

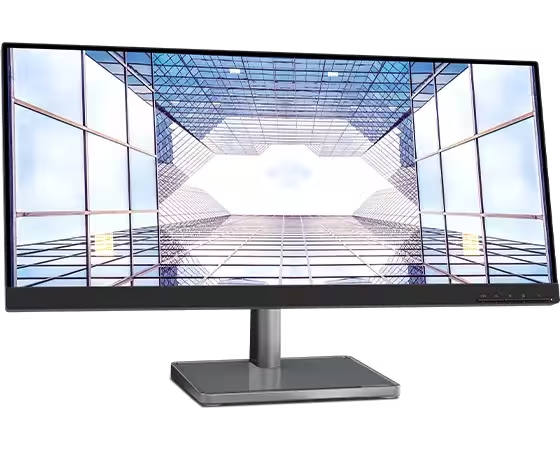

 Most customers prefer a 32" or larger screen.

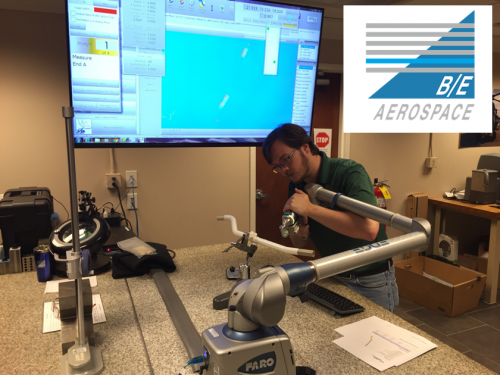

Some customers like to use larger monitors to allow for easy viewing by multiple operators. This B/E Aerospace installation shows a large TV. The benefit of using a TV with an HDMI cable is that the TV has built-in speakers that replace separate amplified speakers.

Multi-screen Support

As of VTube-LASER 2.9, VTube offers extensive multi-screen support that allows you to display three main windows simultaneously.

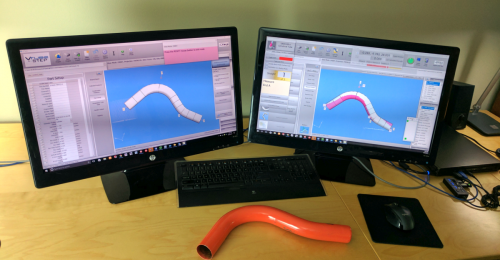

This image shows the STEP screen on the left and the LASER screen on the right.

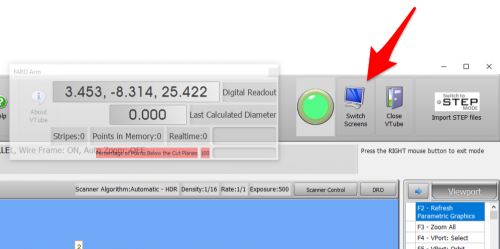

When VTube senses multiple screens, it shows the Switch Screens buttons in the toolbar.

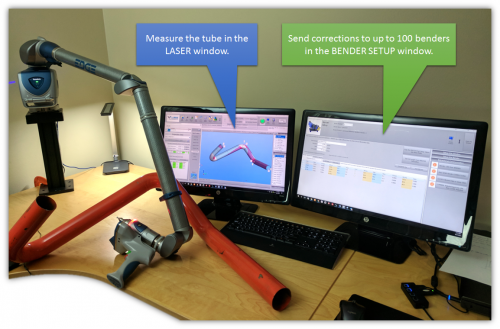

This setup shows LASER mode on the left screen and BENDER SETUP on the right.

This setup is appropriate for users who regularly send setup and correction data to benders.
