How to BACKUP and RESTORE VTube configuration files

Which files are used to create the backup?

The Import/Export configuration feature described here builds a backup of a .VCZB file.

The file end with ".vczb" but can be changed to a ".zip" filename. The name before the filename extension will generated with a name that looks like this:

The name includes the date and time encoded into the name.

Steps to BACKUP the Current Configuration

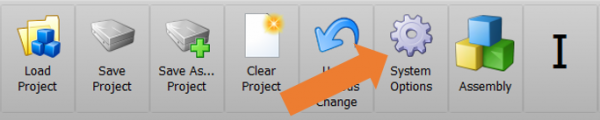

STEP 1) Go to System Options

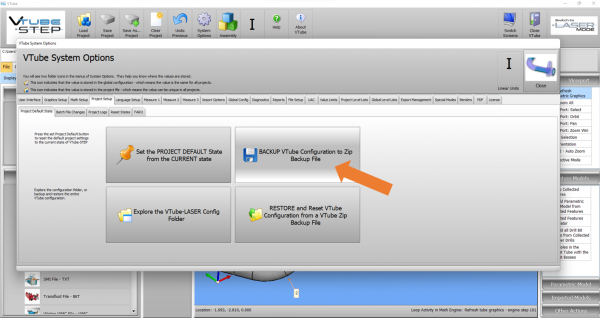

STEP 2) Find the Project Setup tab and select

"BACKUP VTube Configuration to Zip Backup File"

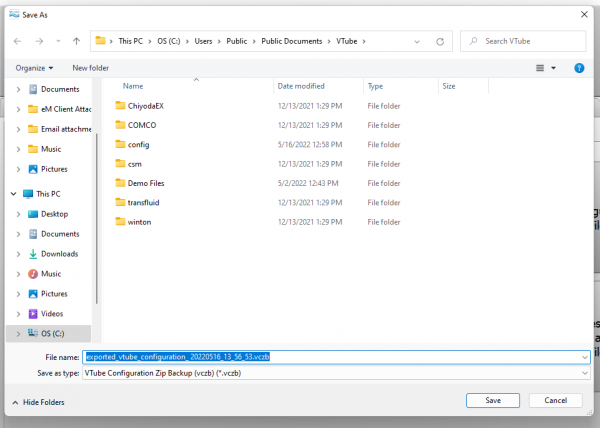

STEP 3) Save the exported .vczb file

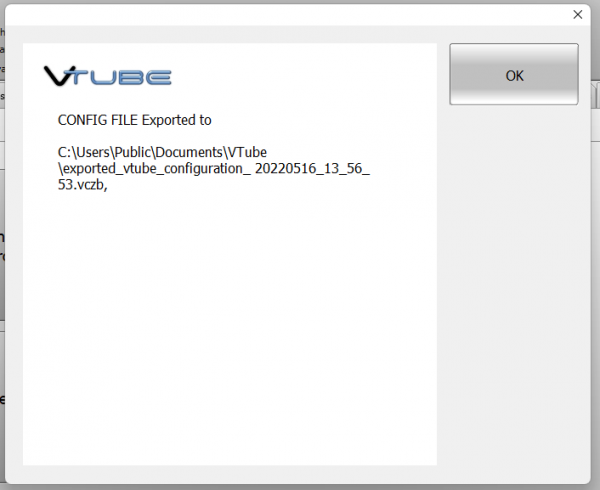

STEP 4) Press OK


Steps to RESTORE a Configuration from a Backup


STEP 1) Go to System Options

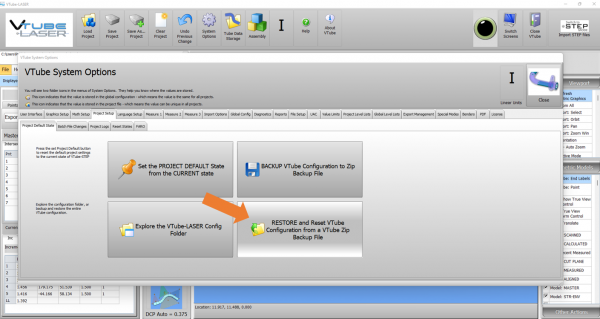

STEP 2) Find the Project Setup tab and select

"RESTORE and Reset VTube Configuration from

a VTube Zip Backup File"

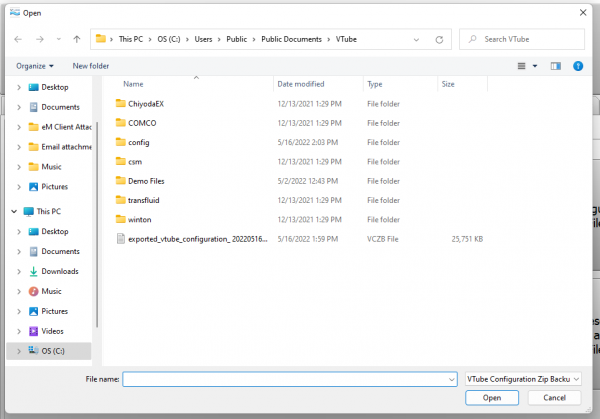

STEP 3) Find and open the correct .vczb

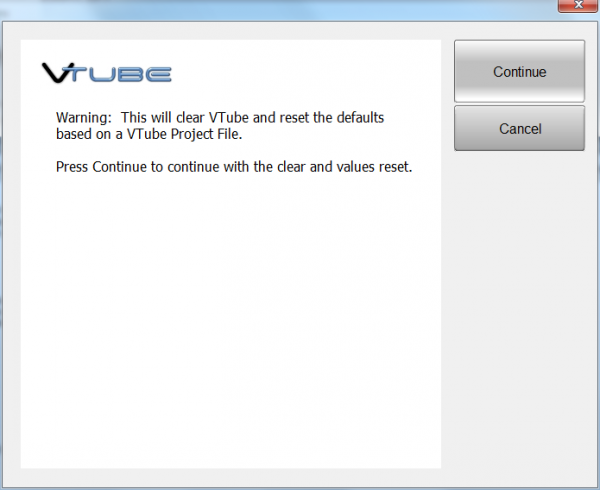

STEP 4) Press Continue

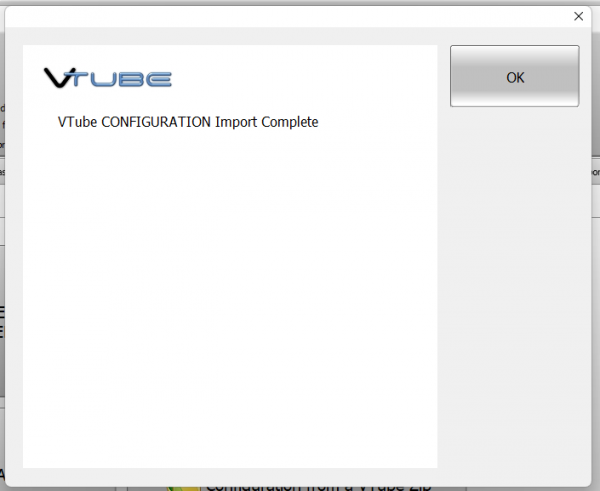

STEP 5) Press OK
