Updated: 16 January 2024

Cable Spec 22 - Benderlink for Chiyoda KEINS - MQ41 Inner Bender Cable

  • This is the wiring schematic for Cable Spec 22 used in MQ41 benders.
  • This is a 15-foot cable.
  • Yellow sheath is preferred.
  • Use twisted pair Ethernet. Never use solid-core cable.

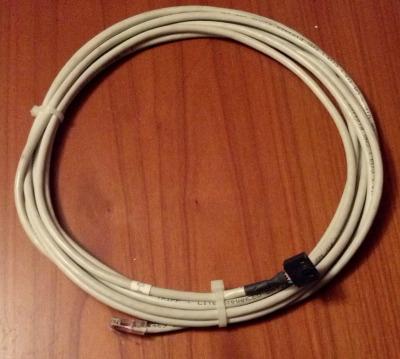

Cablespec22 cableimage.png

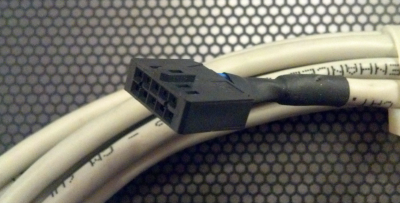

Ampmod 10pin cable22.png

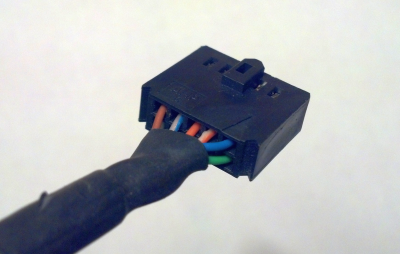

Cable22 ampmod cableside.png

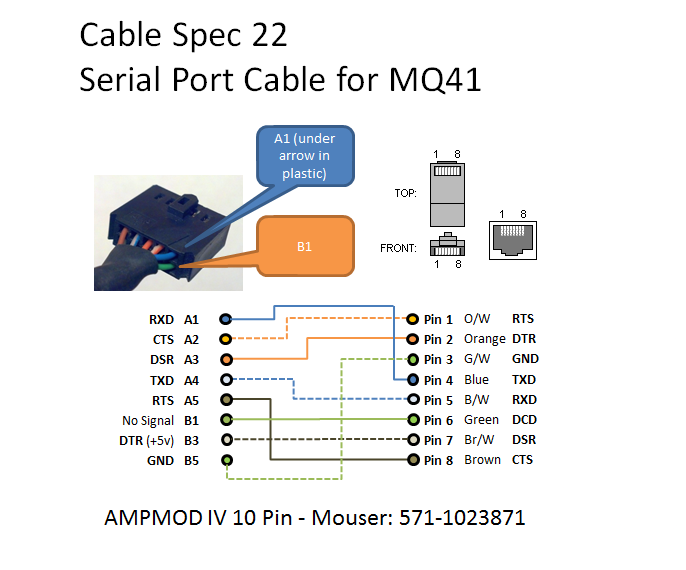

Cablespec22 pinout.png



Notes

  • The wire colors can vary from the diagram shown above. It is only important that the wires are connected to the correct points.

  • The A row in the Amp Mod IV block (the black rectangular connector) is always on the KEY side of the connector.

  • Pin 1 is indicated with an arrow embedded in the plastic of the Amp Mod IV block.

  • A wire from B1 to pin 6 is not required for this bender. Some cables will not include that wire.

  • The wire coming out of B3 indicates if the bender is ON or OFF. Pin B3 outputs between 5 and 10 volts DC when the bender is ON. If the bender control is switched on, then the DSR signal at the Benderlink computer's COM port will also show active. The state of the incoming DSR signal can be tested with an RS-232 testing program, like WCom32.exe (You can download WCom32 from our website.)
