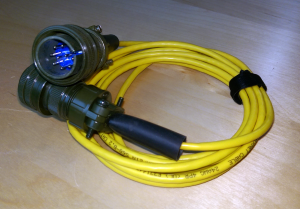

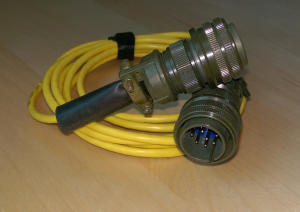

This is the wiring schematic for the Eaton-Leonard-style current loop cable.
Connector Hardware: 97 series connectors - 10-pin Amphenol Circular Male on both ends
Parts List
Connector
- Amphenol Part Number 97-3106A-18-1P-ND
- DDK Part Number: D/MS 3106A-18-1P
- DDK Part Number: D/MS 3106B-18-1P (Is split backshell version)
Cable Clamp and Bushing
- Amphenol Part Number: 97-3057-1010-1-ND
- DDK Part Number: D/MS 3057-10A
Reducing Bushing
- DDK Part Number: AN3420-8
- Provides support for cable clamp on circular connector
Cable
- 24 Gauge Twisted Pair, Shielded
- Belden 9504 (pin-out is shown above)
- Length – 10, 25, 50, or 100 feet typical (Make all cables 10 feet long unless specified differently.)
|
|
