Cable Spec 33 - Simulate the Premier Bender side of a current loop connector Amp Circular to RJ-45 - inside of Benderlink Ethernet Module

Contents

• 1 Cable in the Box
• 2 Wiring schematic
• 3 CB-EL1 Board Setup For Use With Cable 33
• 4 Breakout Tester for Cable 33
• 5 Other Pages

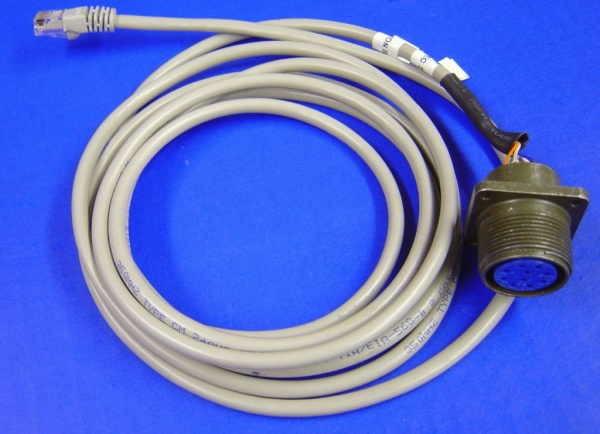

Cable in the Box

This is for use inside Benderlink Ethernet Modules with current loop electronics.



Use for simulating the PREMIER (Bender) side only.

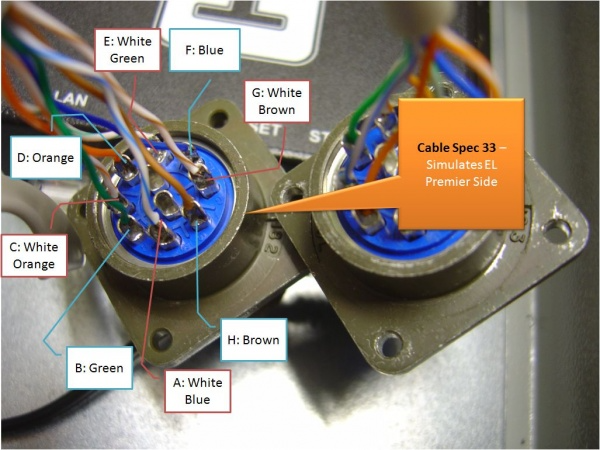

Wiring schematic

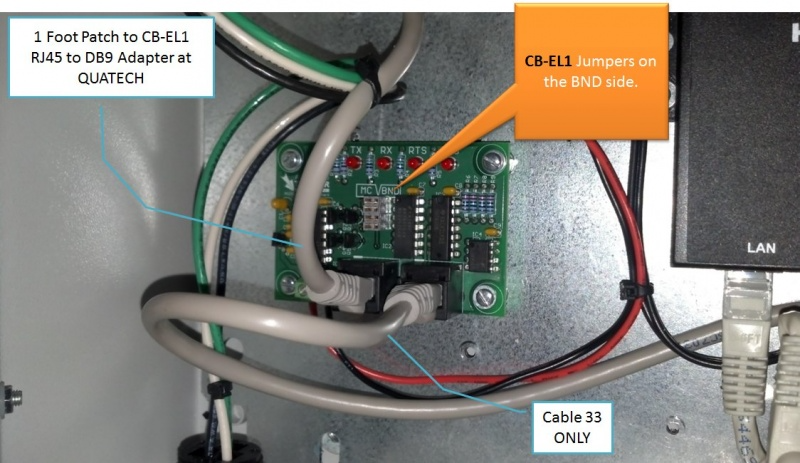

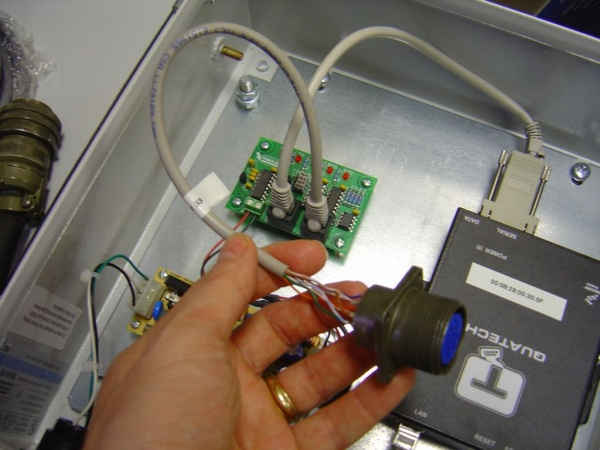

CB-EL1 Board Setup For Use With Cable 33

In this configuration, it is necessary to use a version 2 CB-EL1 board with the jumpers set to "BND" to simulate the bender side of the connection. Use this setup for connecting a non Eaton Leonard bender to an Eaton Leonard Vector measuring center. You can also use this cable to replace the current loop board at a Premier bender.

The original CB-EL1 board (without jumpers) can only handle the Vector measuring center side connection. Do not use v1 in this configuration.

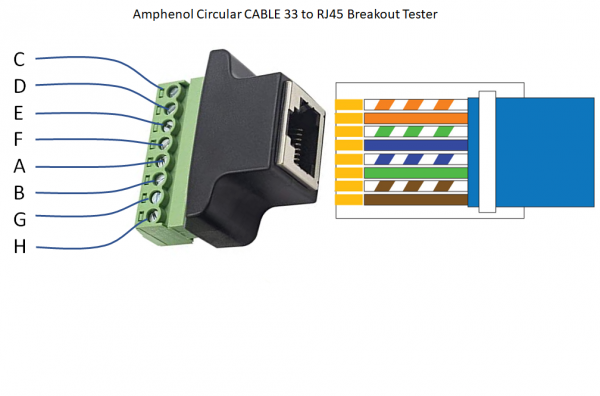

Breakout Tester for Cable 33

Use a breakout tester for continuity checks like this:
