Cable Spec 34 - Simulate the Laservision VECTOR side of the current loop connector Amp Circular to RJ-45 - inside of Benderlink Ethernet Module
Contents |

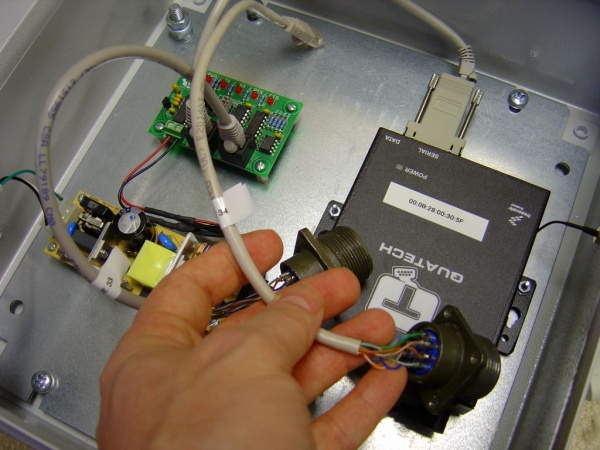

Cable in the Box
It is for use inside Benderlink Ethernet Modules with current loop electronics.
It is used for simulating the VECTOR (measuring center) side only.

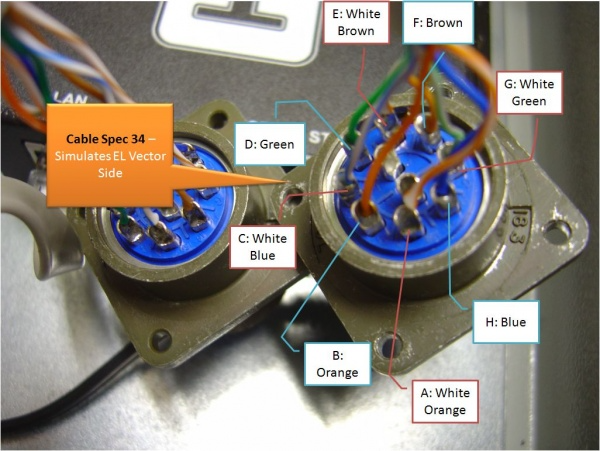

Picture of Wiring

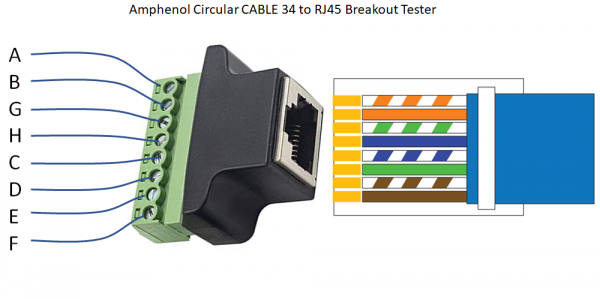

Breakout Tester for Cable 34
Use a breakout tester for continuity checks like this:
