Cable Spec 35 - CB-EL1 RS232 RJ45 to DB9 Female

Contents


Cable Pinout

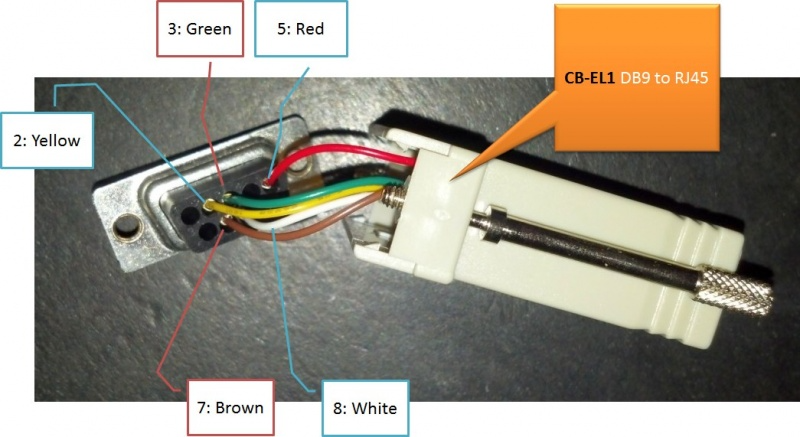

This is the wiring schematic for the RJ45 to DB9 female adapter for the CB-EL1 RS232D port on the board.

I2t adapter.jpg


Db9 rej45 cb-el1 pinout.jpg

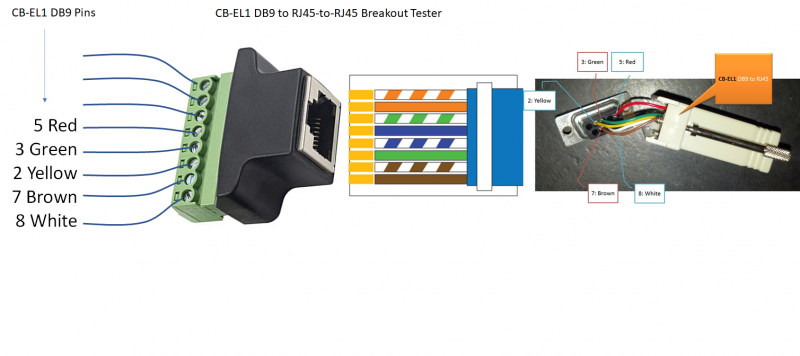

Breakout Tester for Cable 35

Use a breakout tester for continuity checks like this:

Cable CB-EL1 breakout test.png

In the Box

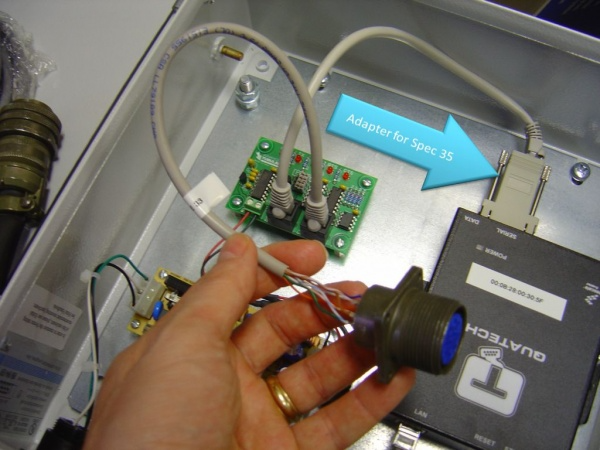

This is an image of an RJ45 to DB9 adapter with the above wiring inside the Benderlink ethernet module. The DB9 port is female to attach to a standard PC male port.



Adapter35 inbox.jpg
