CB-EL1 DB9 to RJ45 Adapter

This adapter converts the CB-EL11 RJ45 port to a female serial port.

For example, this adapter is used in Benderlink modules to connect the CB-EL1 board to the QUATECH or MOXA serial device servers.

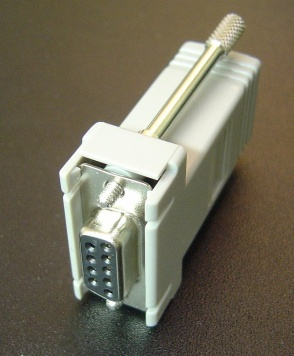

I2t adapter.jpg

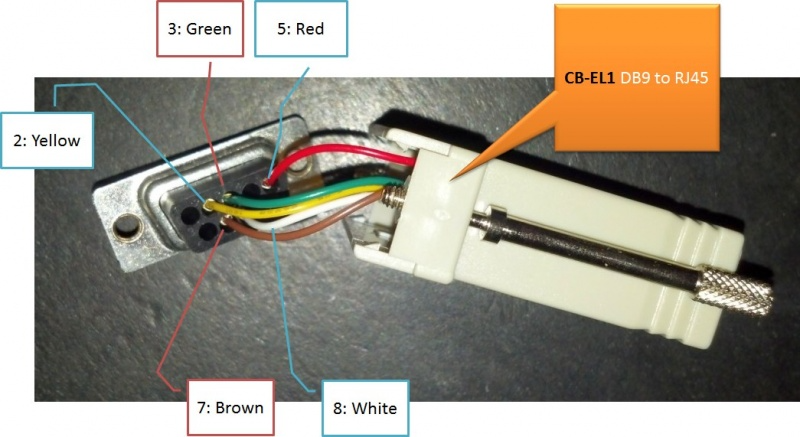

Db9 rej45 cb-el1 pinout.jpg <be>

Breakout Tester

Use a breakout tester for continuity checks like this:

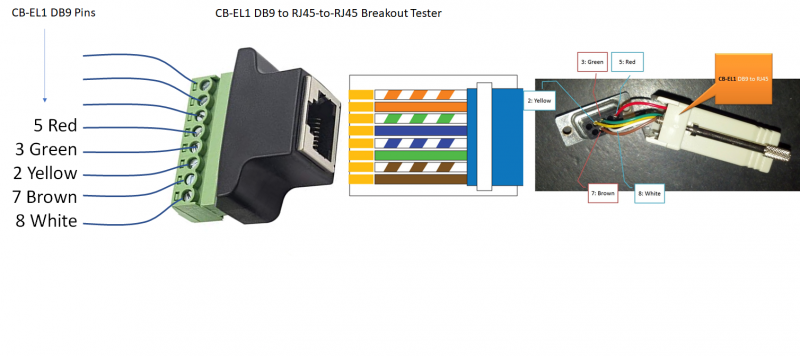

Cable CB-EL1 breakout test.png
