Multi-Elongation

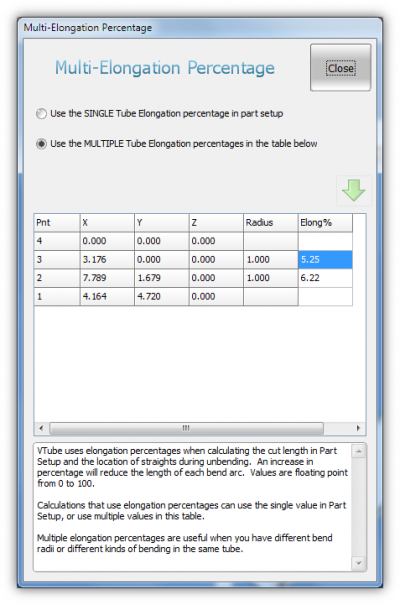

Multi-Elongation Percentage Compensation Setup

VTube allows each bend to have a unique tube elongation percentage - which is used to calculate correct CUT LENGTHS and UNBENDING LENGTHS

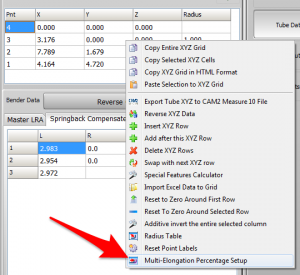

Use the popup menus in either the PART SETUP or the XYZ grids to get to the setup window.

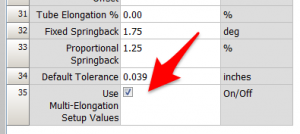

A new checkbox is added at the bottom of Part Setup to allow this feature to be activated.



If the checkbox is unchecked, then the single Tube Elongation % value is used to calculate elongation for all bends.
