Surface Spray

Removable surface sprays are helpful for coating surfaces that are highly reflective or very black. Then can also aid in marking the area to measure.

AESUB Blue Spray

  • Very thin coating
  • Designed for laser scanning
  • Vanishing (evaporates over time) - no cleaning required
  • $240 per case of 6 cans (January 2022, Amazon)
  • See aesub.com

Aesub blue spray.png

Helling Spray

  • Very thin coating
  • Designed for laser scanning
  • Cleans with a dry rag.
  • Is not as dense as Magnaflux or Dynaflux. The goal of the spray is to break the reflectivity - for which a complete coverage is not necessary.
  • $300 per case of 12 cans (January 2021)
  • See 3DScanSpray.com

Helling spray.png

Magnaflux

Magnaflux Logo.jpg

Magnaflux Spotcheck SKD-S2 Developer

  • Works well
  • Very expensive compared to Dynaflux ($50 to $75 per can)
  • For applications that require cleaning, the corresponding cleaner is SKC-S
  • May cause an allergic reaction in the skin of some operators

Magnaflux Developer.jpg Magnaflux Cleaner.jpg

Dynaflux

Dynaflux Logo.jpg

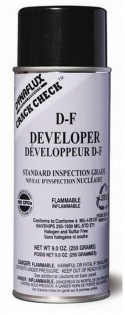

Dynaflux DF315-16 Crack Check D-F Developer

  • Works well
  • DF315-16 Flammable Nuclear grade uses non-chlorinated solvent
  • DNF315-16 Non-flammable Standard grade
  • Very inexpensive ($5 per can)
  • For applications that require cleaning, the corresponding cleaner uses the same Dynaflux part number.
  • May cause an allergic reaction in the skin of some operators

Dynaflux Crackcheck.jpg Dynaflux Cleaner.jpg
