VTube Update History 4.3 - November 2024
Version 4.3 Build 1700, November 26, 2024
1 - Added the Bend Plane Clock Tool button to the Measure Process menu
Your browser does not support HTML5 video.
2 - Added the Straightness Calculator button to the Measure Process menu
3- Added the Coil Generator button to the Master Tube tab menu.
4 - A new report token, "TangentsInTolerancePercentage" will show the tangent-points-in-tolerance percentage in a report
Version 4.3 Build 1691, November 15, 2024
1 - Found and fixed issues in SOCO Import
Before attempting to import data, VTube now searches for and fixes inconsistent structures in the SOCO file.
A cut length calculation error occurred every other import. This has been corrected.
Version 4.3 Build 1690, November 14, 2024
1 - User Interface Caption Fixes Made
The End Scan Flier Filter dialog that shows "End A" for end B now shows "End B."
The Evolve Import window has a corrected caption.
The English.xls language file for VTube is updated in the installation program.
Version 4.3 Build 1689, November 13, 2024
1 - VTube-STEP has improved logic for STEP, IGES, and STL imports for customers that use slower networks.
The VTube import method cannot handle non-ASCII characters in the path name. Therefore, VTube copies the imported filename to a path and filename that uses standard ASCII characters that always work for the VTube importer. However, the copy can cause problems for slower networks - causing the previous STEP model to be loaded. Therefore, the new logic will copy files to temporary legal names only if non-visible ASCII codes are found in the path or filename.
Version 4.3 Build 1688, November 11, 2024

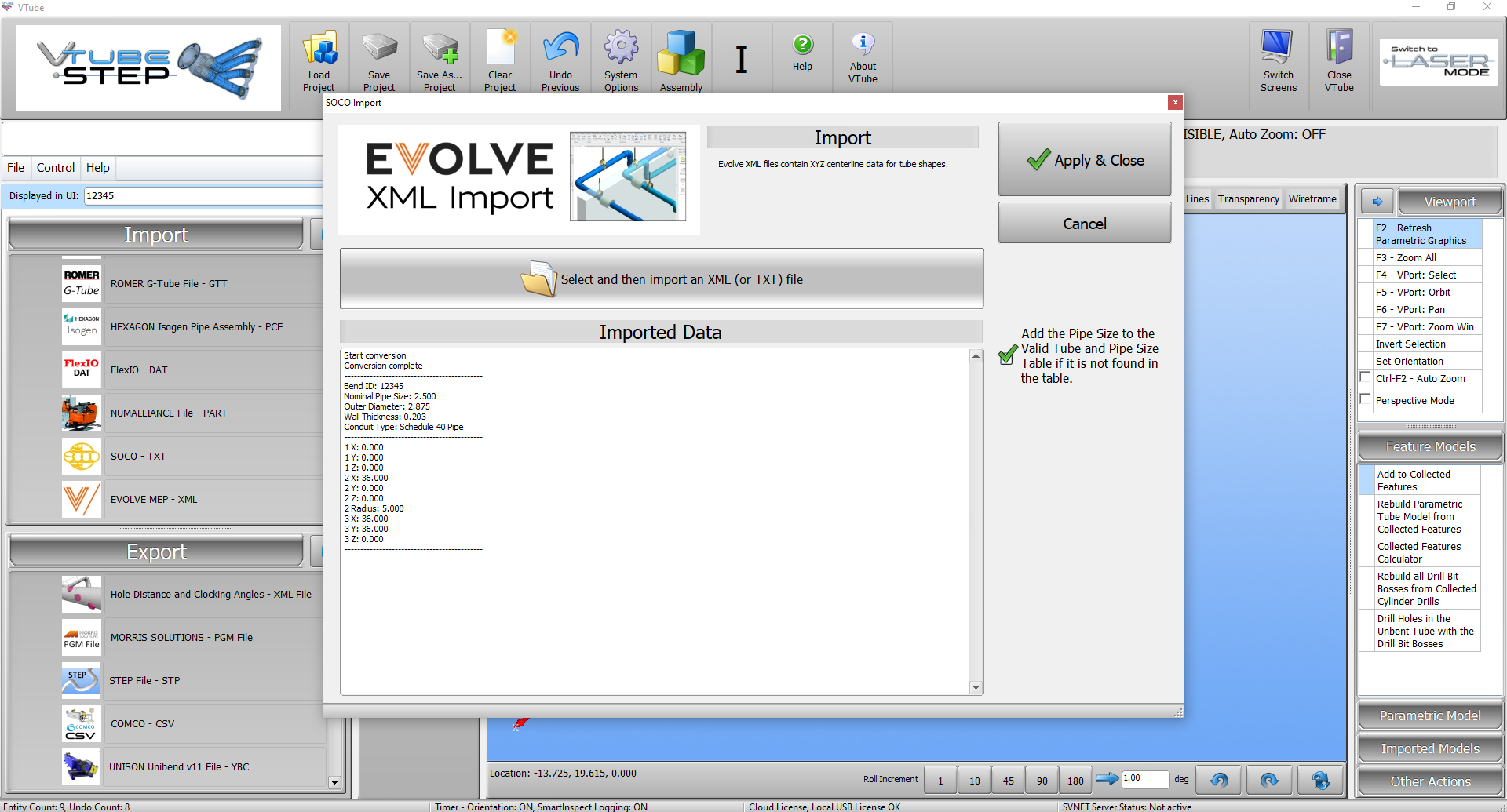

1 - Evolve XML Import is added to VTube-STEP for importing bent conduits.
Evolve is an Autodesk Revit add-in created specifically for electrical projects.
Version 4.3 Build 1686, November 7, 2024

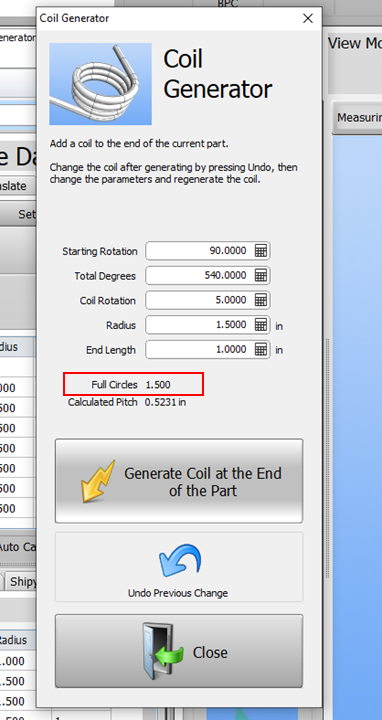

1 - We fixed to Full Circles value in the Coil Generator user interface.
Version 4.3 Build 1685, November 6, 2024

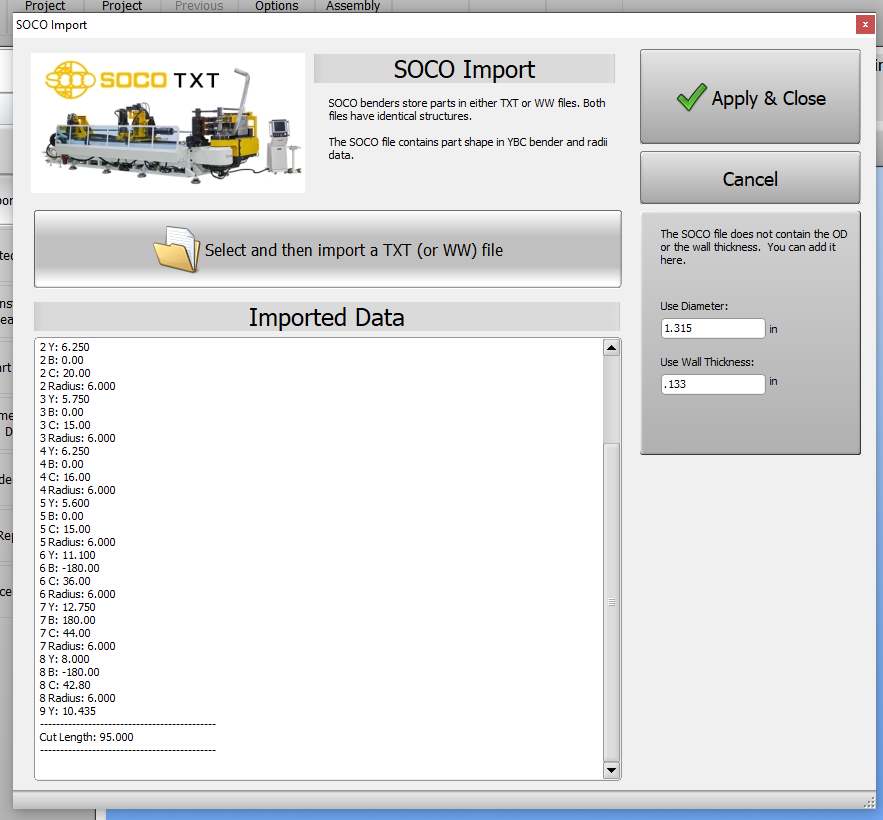

1 - A new SOCO Import feature is added to VTube-STEP.
Version 4.3 Build 1683, November 2, 2024

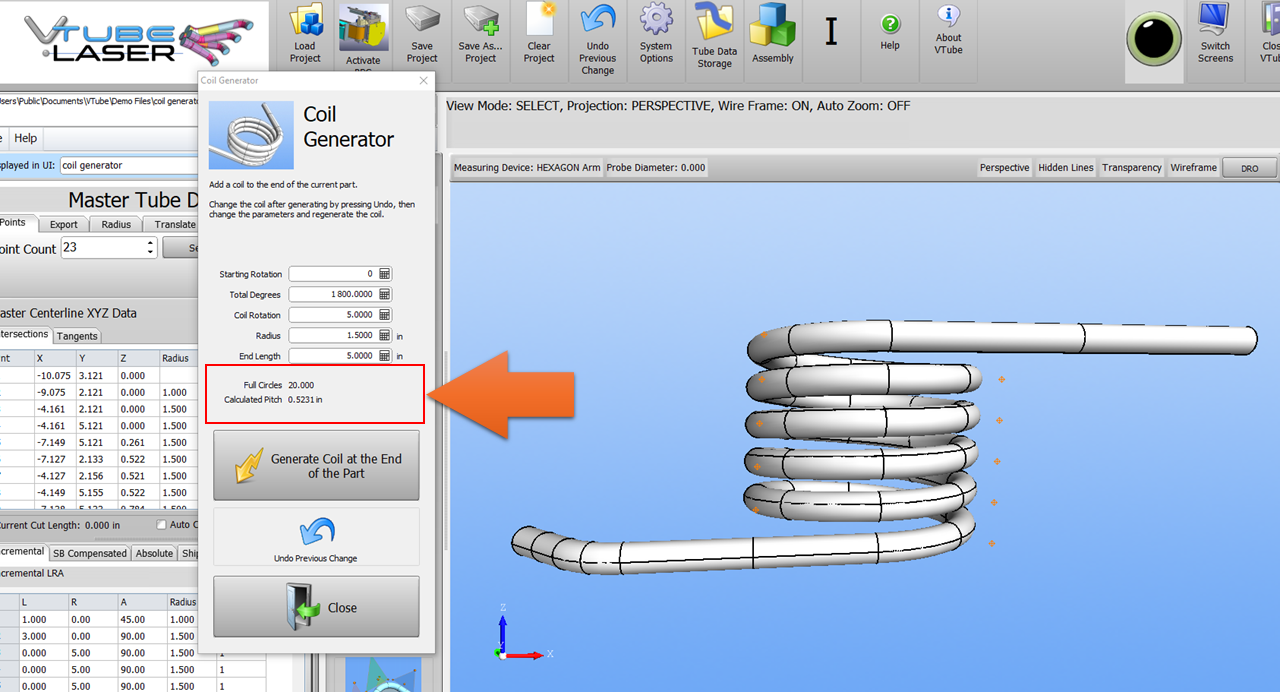

1 - The Coil Generator is enhanced with new features.
The Coil Generator now shows the total number of full circles that the Total Degrees will generate in the coil.
The Coil Generator now shows the resulting Pitch distance between the legs of the coils with the current Coil Rotation and Radius value.

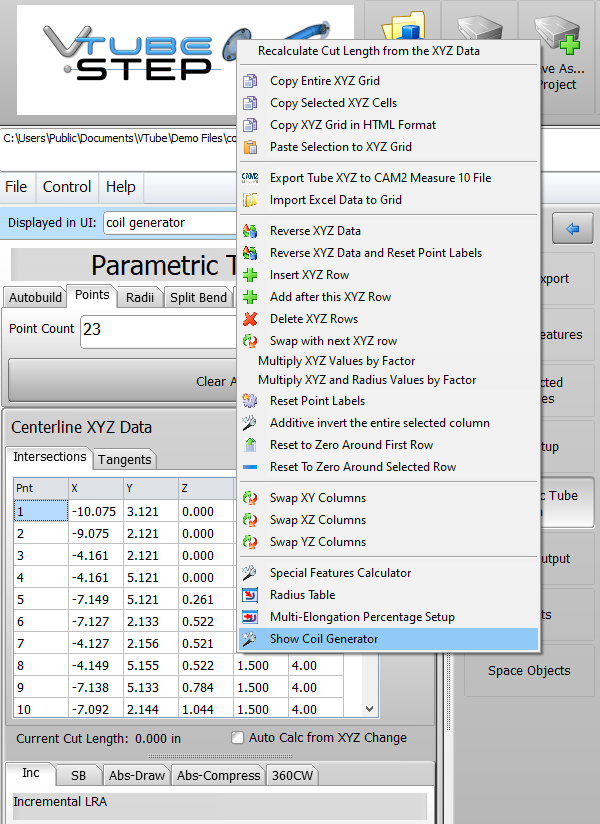

The Coil Generator can now be loaded from the XYZ grid as well as the LRA grid.
