About the VTube-LASER iMC Table Systems

About the iMC - Integrated Measuring System

Customers sometimes request an entire system that includes everything to measure and qualify tube shapes. The iMC can be combined with our VTube-LASER software and various measuring hardware systems.

Two iMC Standard Length Tables - 6 foot and 12 foot

There are four standard Integrated Measuring Center systems in two different sizes.

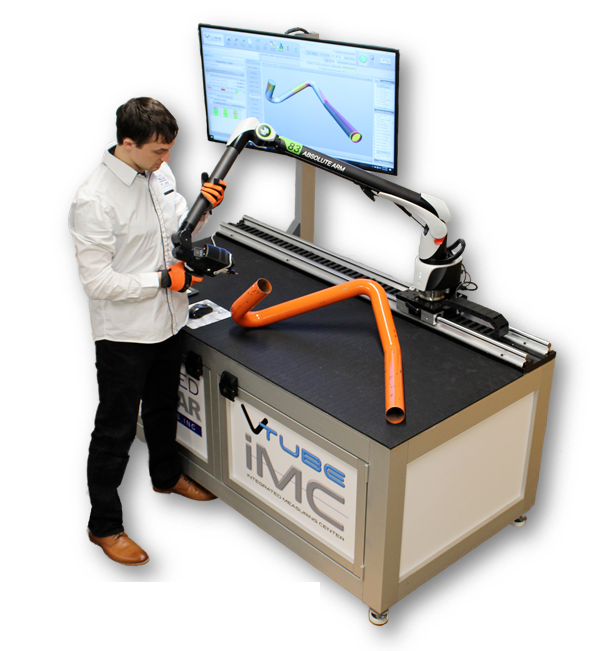

iMC 1800 - 6 Foot Closed Table System

It is a 6-foot table with a TRAX that allows the arm to slide along the base.

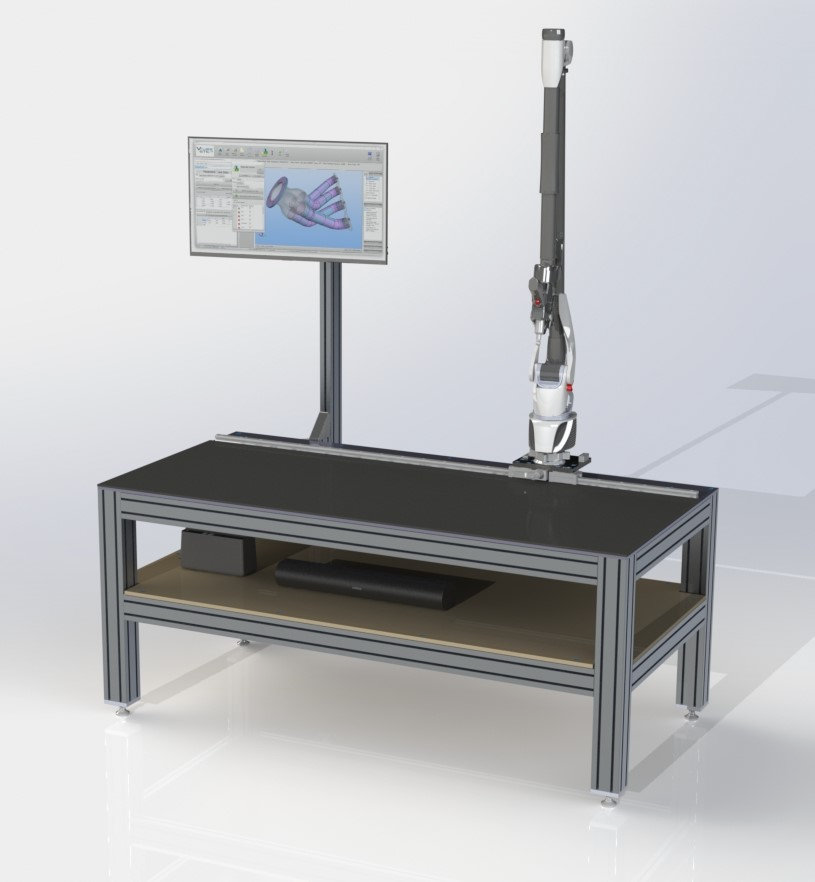

VTube-LASER iMC 1800 Lite Open Table System

This is the iMC 1800 Lite. It is less expensive than the iMC above. It is a 6-foot table with a TRAX that allows the arm to slide along the base.

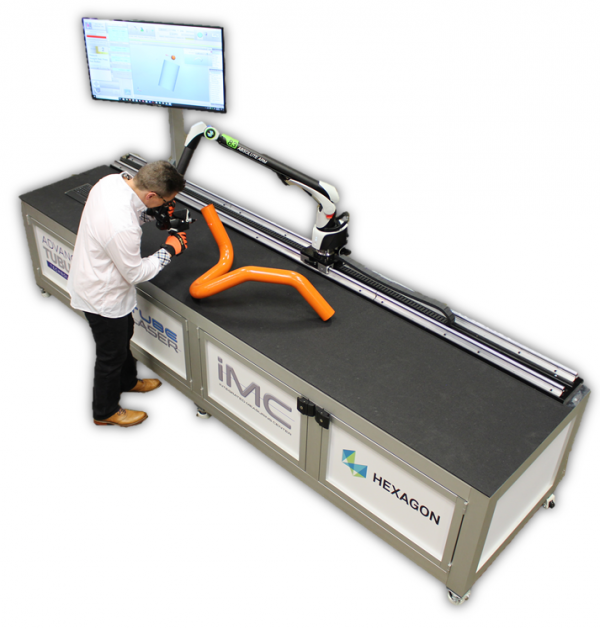

iMC 3500 - 12 Foot Closed Table System

This is the iMC 3500.

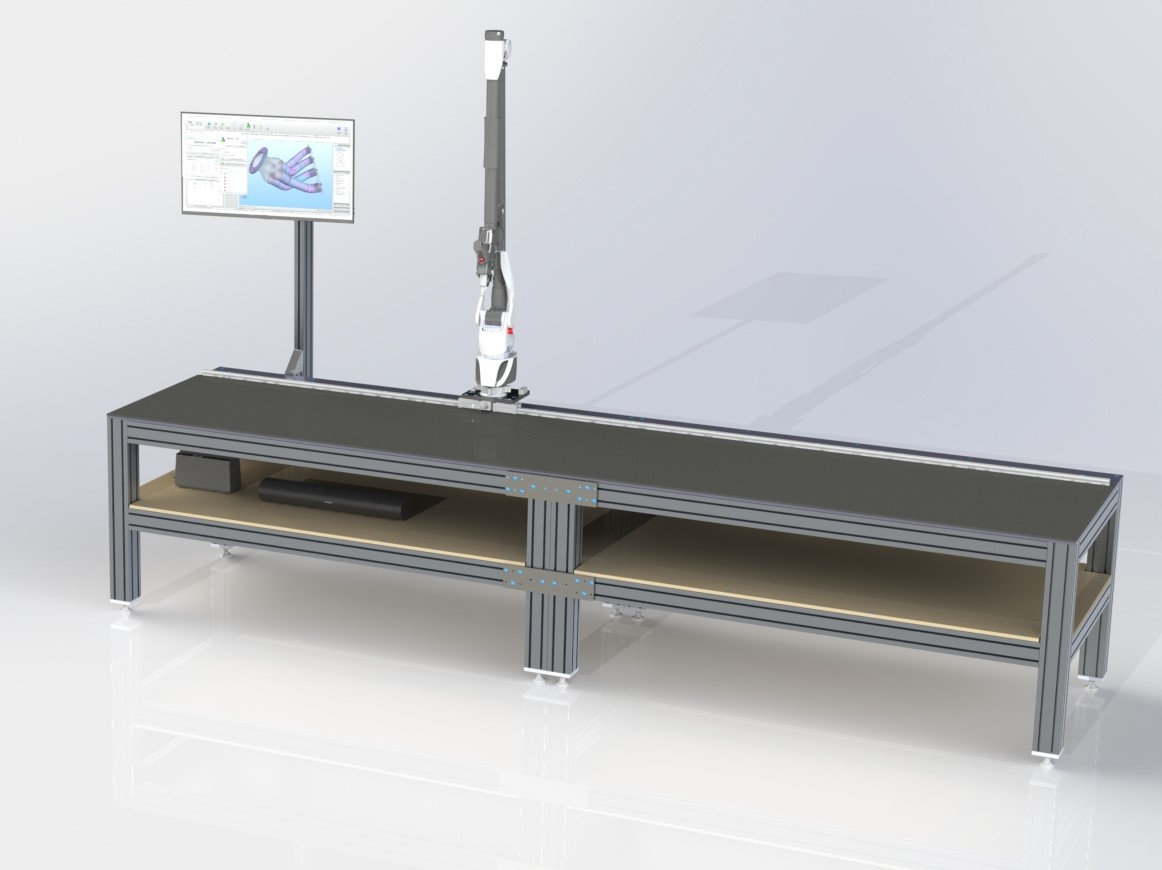

VTube-LASER iMC 3800 Lite Open Table System

This is the iMC 3500 Lite.

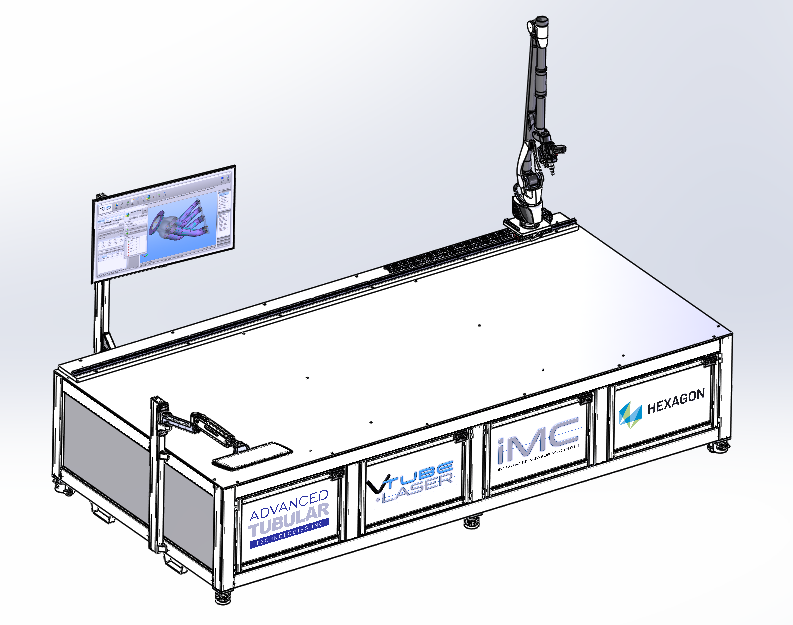

Custom Table Designs

Sometimes a customers ask for custom sizes.  For example, we designed a table that was 6 feet deep for a shipbuilding customer.
