VTube Update History 4.3 - December 2024
Version 4.3 Build 1721, December 18, 2024

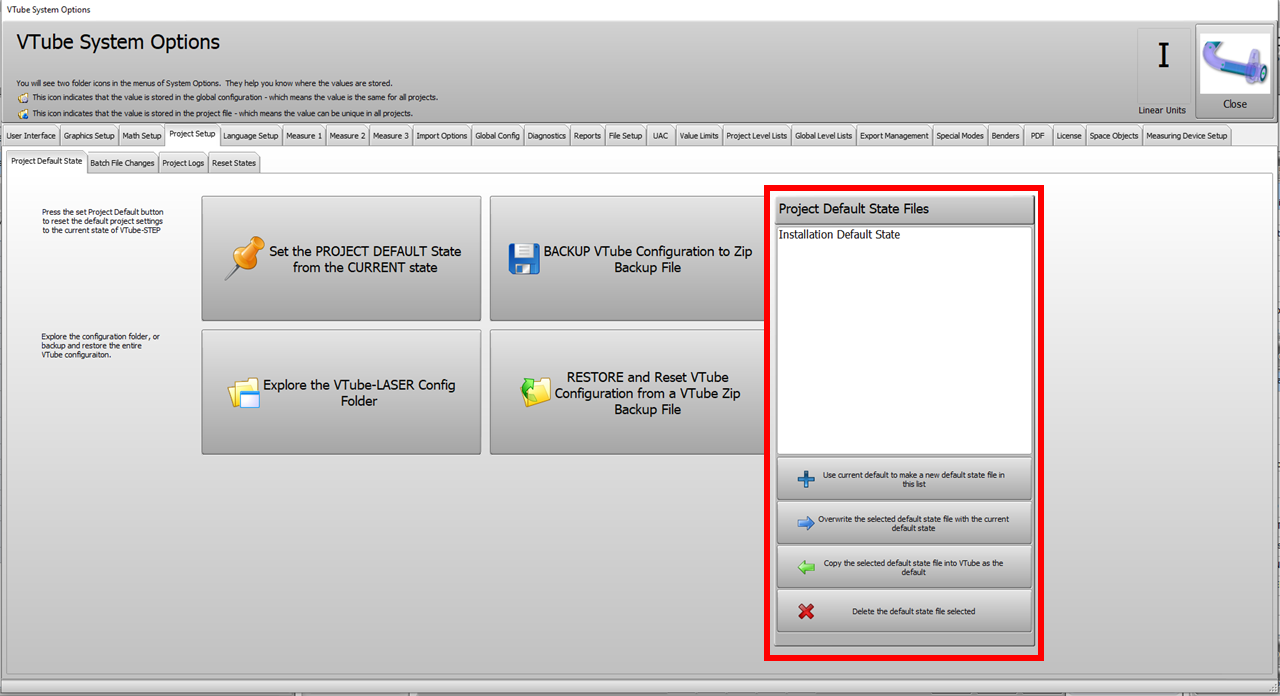

1 - We enhanced the Project Default State Files list to allow for saving the current project state to a default state in the list.
2 -The Project menu in System Options was reorganized for better logic. There is a new Back/Restore Configuration tab that is now separate from the Project Default State tab.
Version 4.3 Build 1720, December 16, 2024
1 -The M-Scan interface was fine-tuned.
2 -The acquisition and accept buttons can be swapped based on user preferences.
Version 4.3 Build 1719, December 12, 2024
1 - Enhancements for the M-Scan interface were made. Values were added to the "vtube local settings.cfg" file to fine-tune the interface.
a - Milliseconds Between Stripes Idle - Nikon Scanner=100
b - Milliseconds Between Stripes Scanning - Nikon Scanner=50
c - Milliseconds Between Stripes Inside Server - Nikon Scanner=100
d - Milliseconds No Motion To Automatic Acquisition Button Up - Nikon Scanner=2000
e - Millimeter Threshold For No Motion To Automatic Acquisition Button Up - Nikon Scanner=1
Version 4.3 Build 1717, December 11, 2024

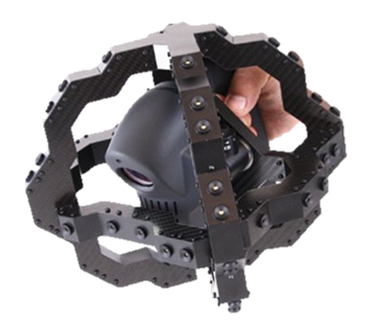

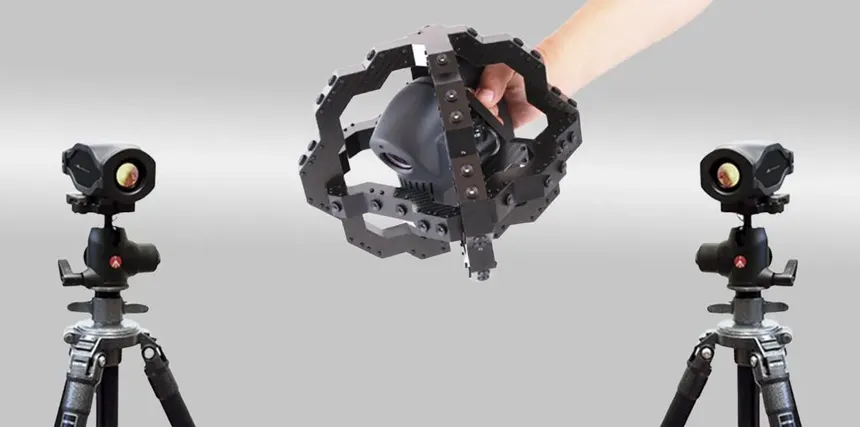

1 - VTube-LASER now supports the Metronor M-Scan system.
See the M-Scan page for more information.
Version 4.3 Build 1716, December 10, 2024
1 - New save multiple default project states to a list in System Options.

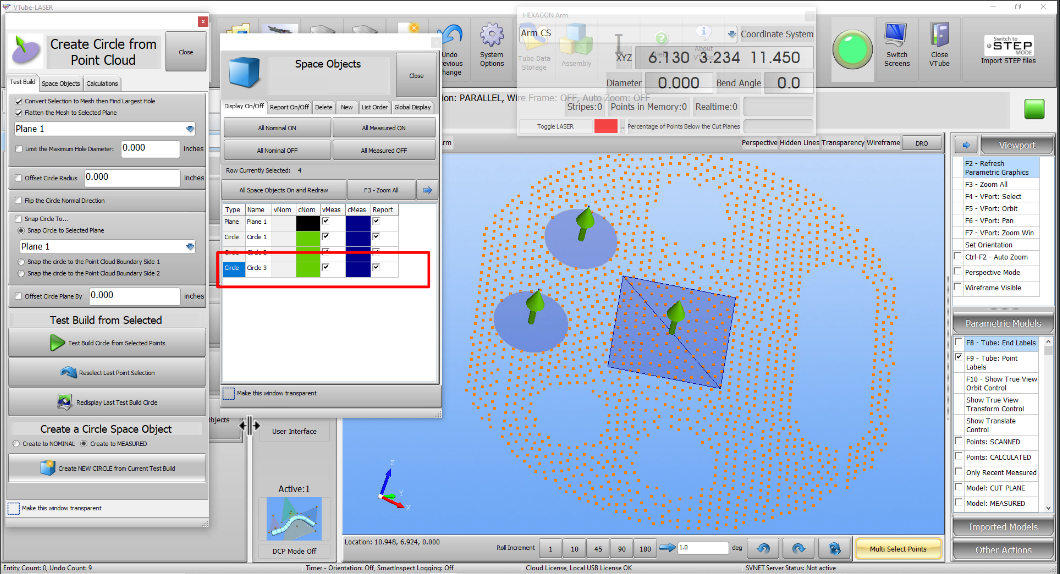

2 - Select Space Object row when build to Space objects.

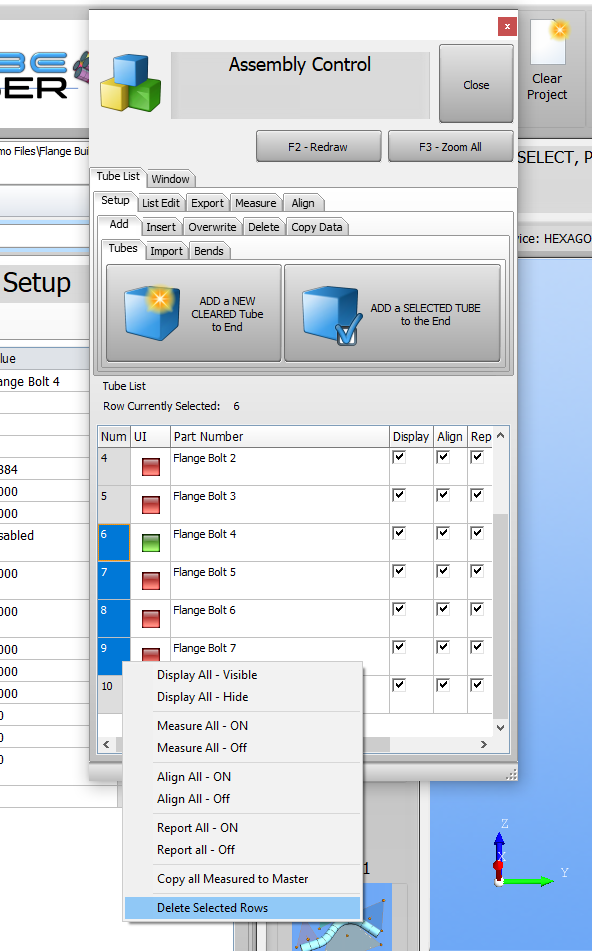

3 - Added Delete Selected Rows to Assembly Popup
Version 4.3 Build 1713, December 6, 2024

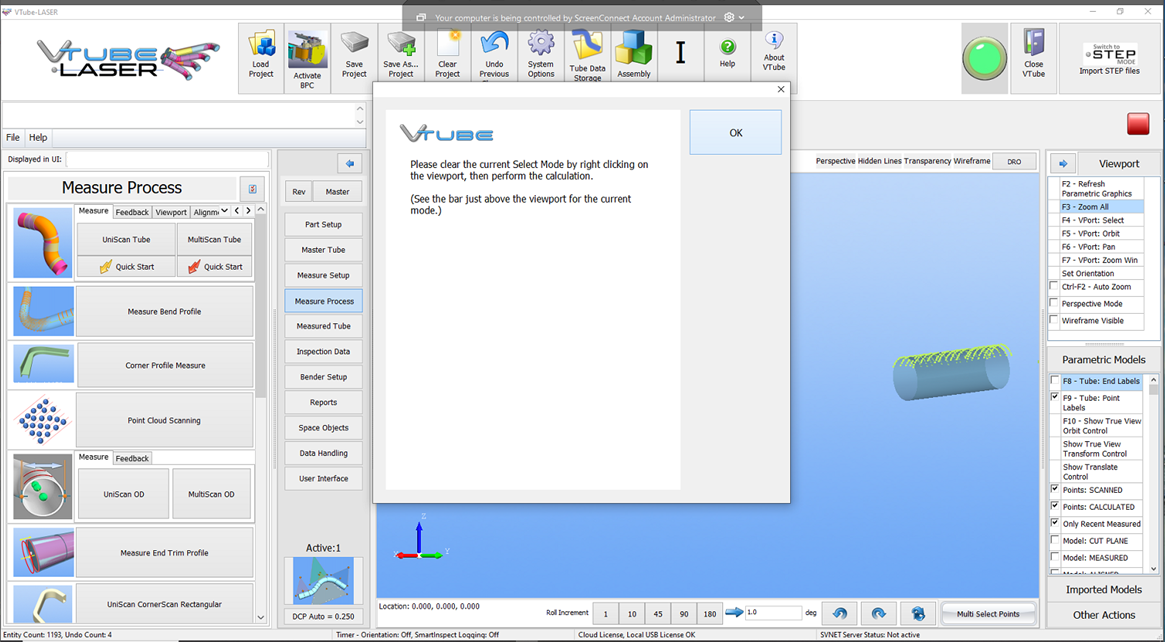

1 - A Select Mode error dialog could display in VTube-LASER when measured data was being built from a measure.
This was not helpful, and it was removed/fixed.
Version 4.3 Build 1710, December 2, 2024

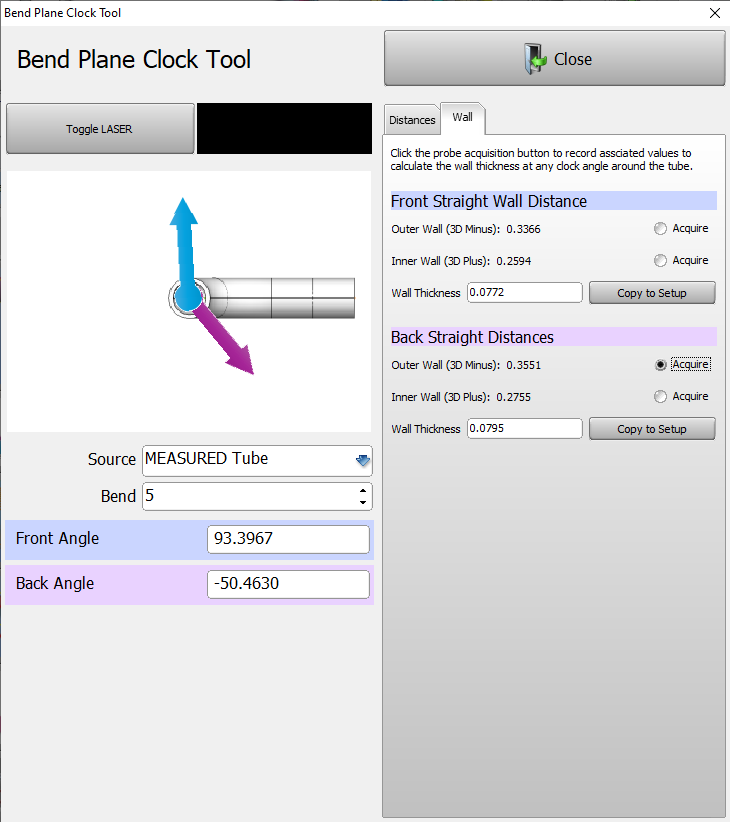

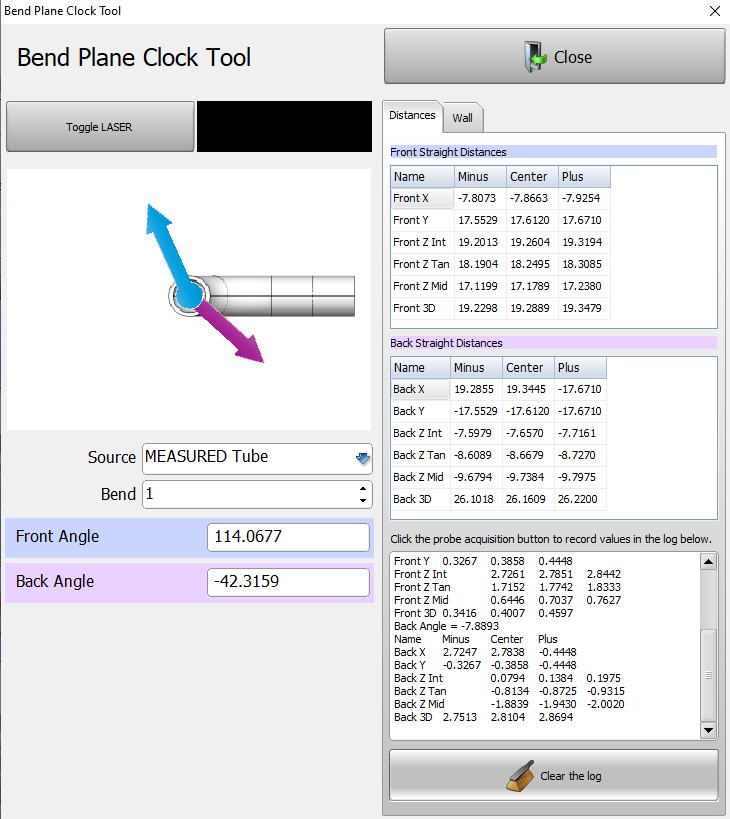

1 - Several enhancements were made to the Bend Plane Clock Tool.
Now, VTube-LASER can show the distance along the straight from the intersection, tangent point, or midpoint in a Z axis.
We also added a Wall thickness calculator.
