About the VTube End Lengths

The end lengths inside the Inspection Data tab are filled in once a tube has been measured and aligned to a MASTER tube. The two values shown will be Trim or Ext.

Trim = The end of the tube (A or B) is too long and needs to be trimmed.

Ext = The end of the tube (A or B) is too short and needs to be extended.

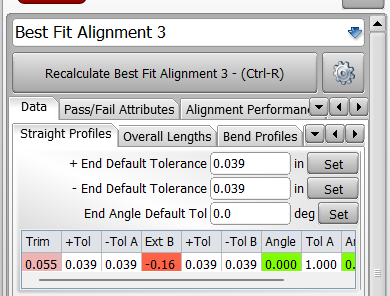

The + or - default tolerance can be set independently with the two separate value boxes under Straight Profiles
