VTube-LASER Bender Correction Reports

VTube-LASER includes several sample bender corrections reports.  These reports are designed to allow users to correct the bender setup after a tube measure.

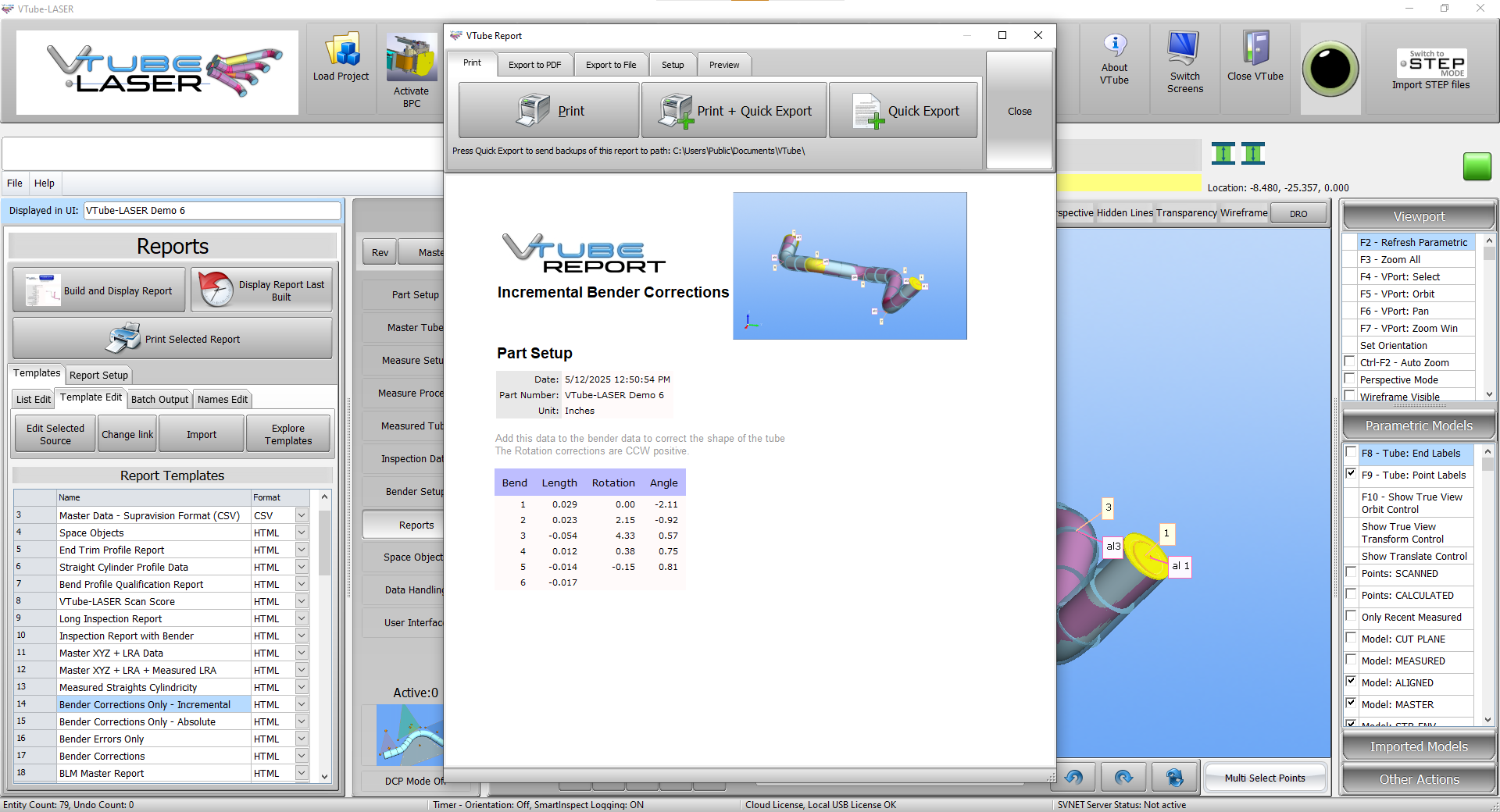

Bender Corrections Only - Incremental

The incremental-style report is the most-used style of correction.  With incremental, you can add the data to the bender data to make corrections. It uses Length, Rotation, and Bend Angle correction values.

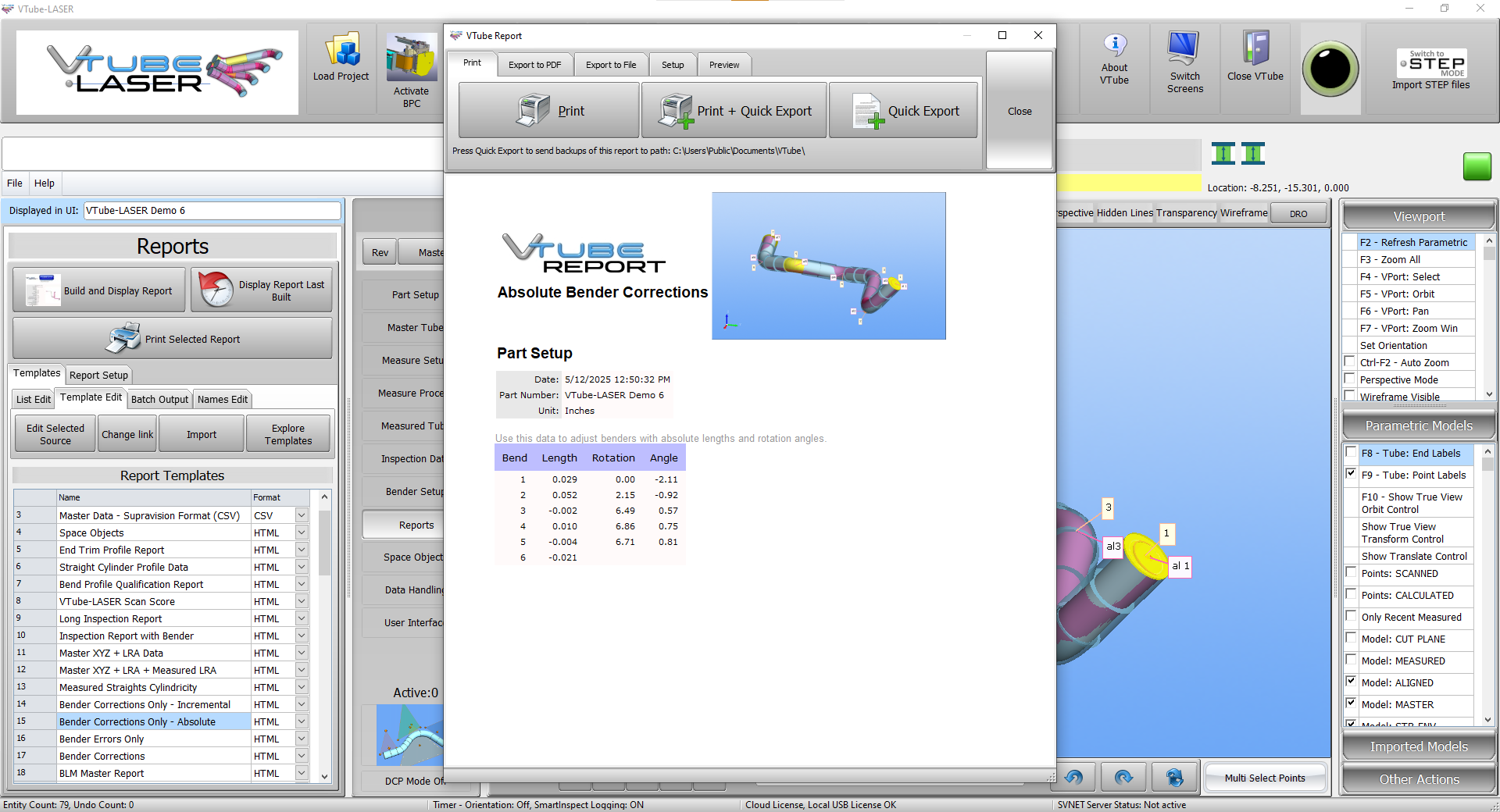

Bender Corrections Only - Absolute

Absolute bender Length and Rotation corrections are affected by all the previous corrections. It is much less common.

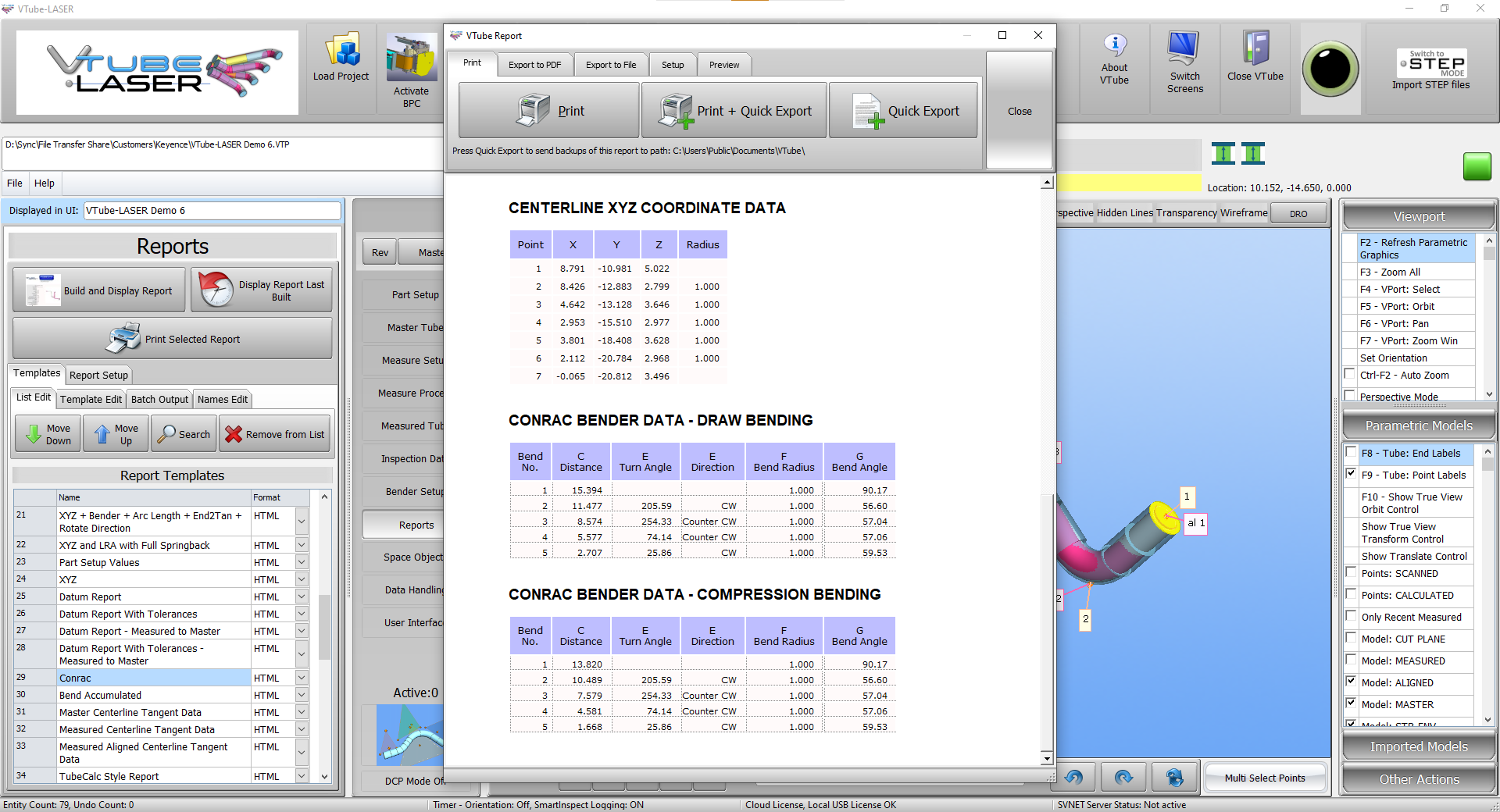

CONRAC

The Conrac correction report contains all the information needed to correct an absolute Conrac bender.

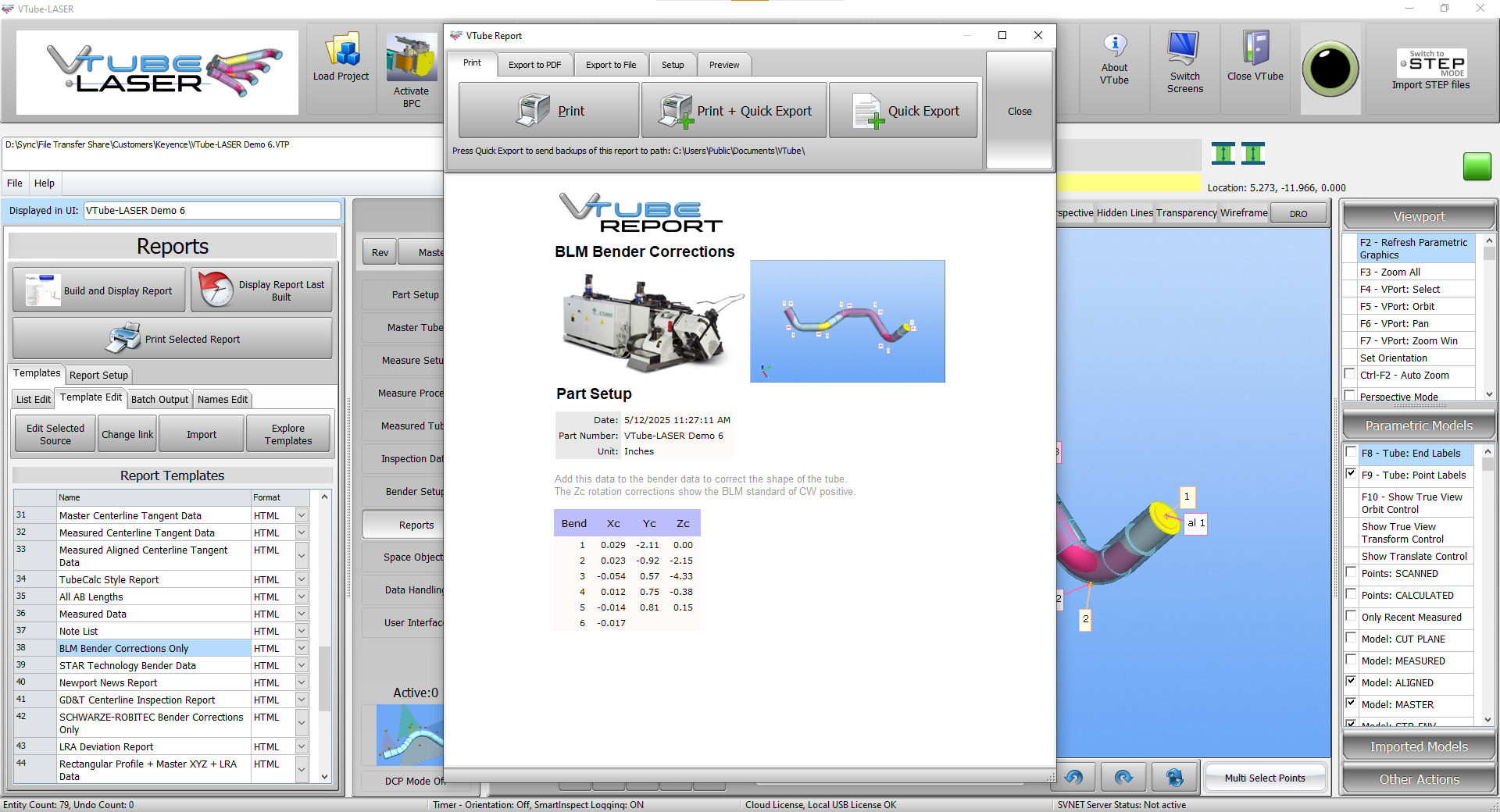

BLM Bender Corrections Only

This correction report is for BLM benders.

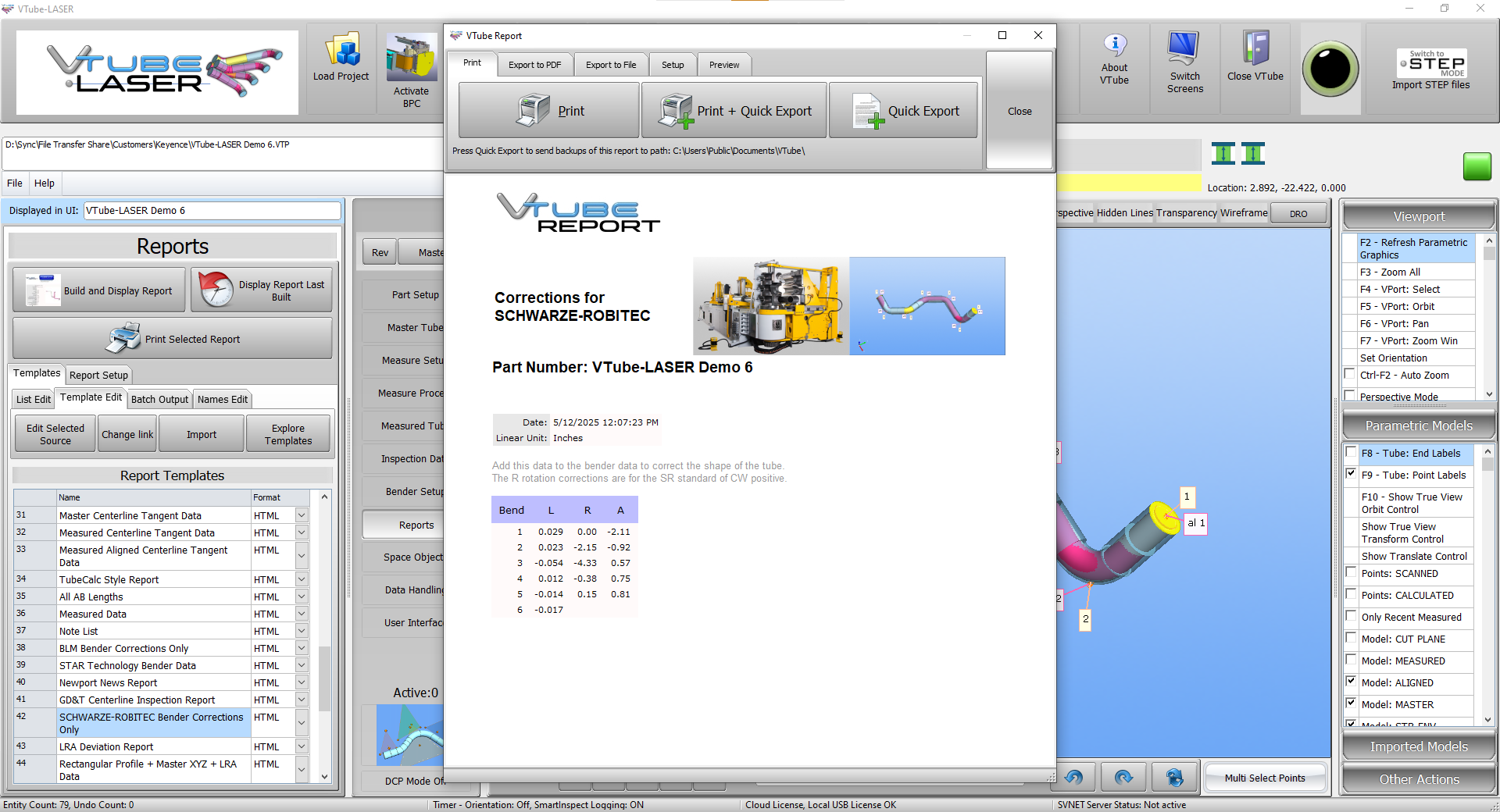

SCHWARZE-ROBOTEC Corrections

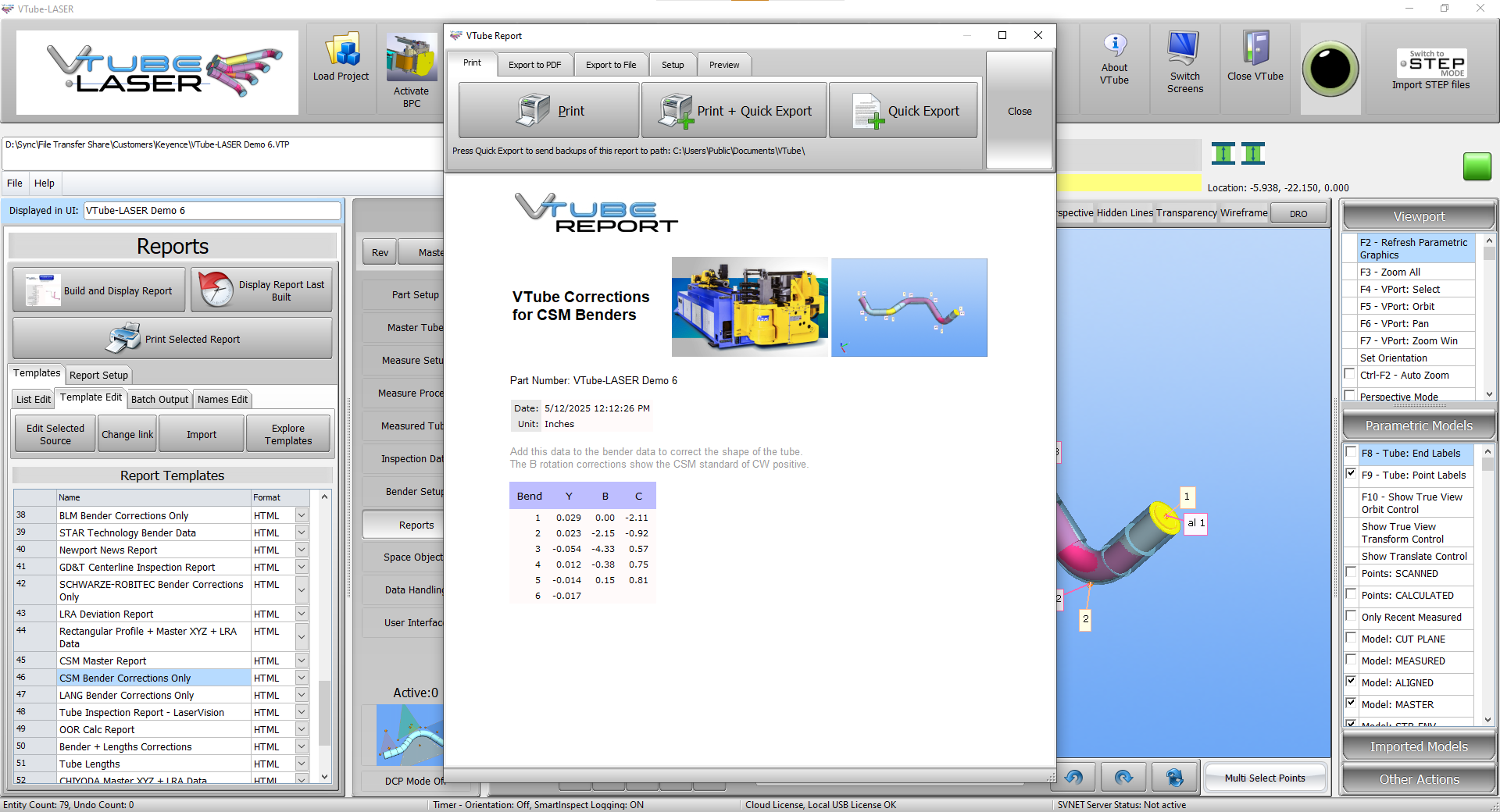

CSM Bender Corrections

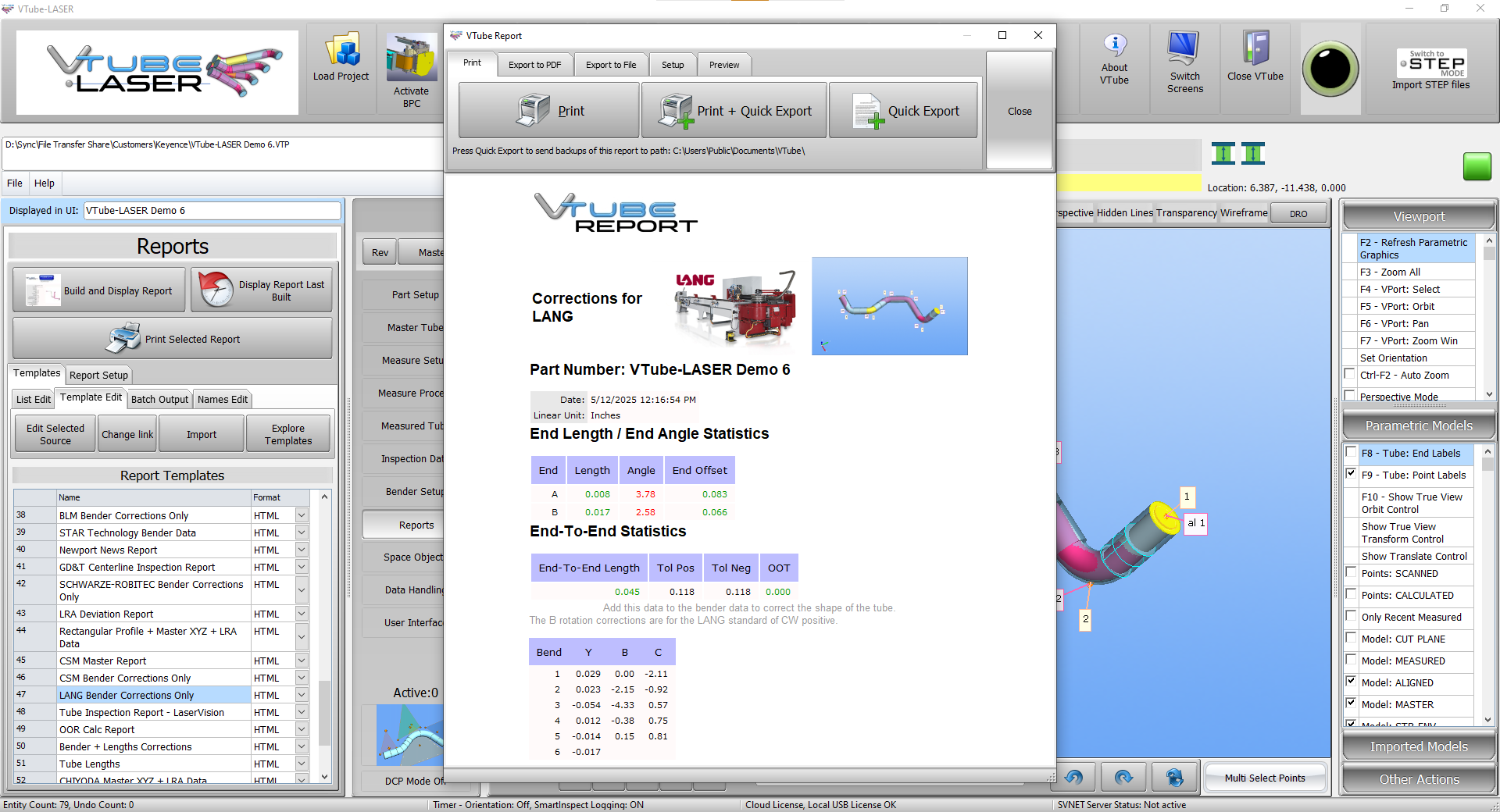

LANG Bender Corrections

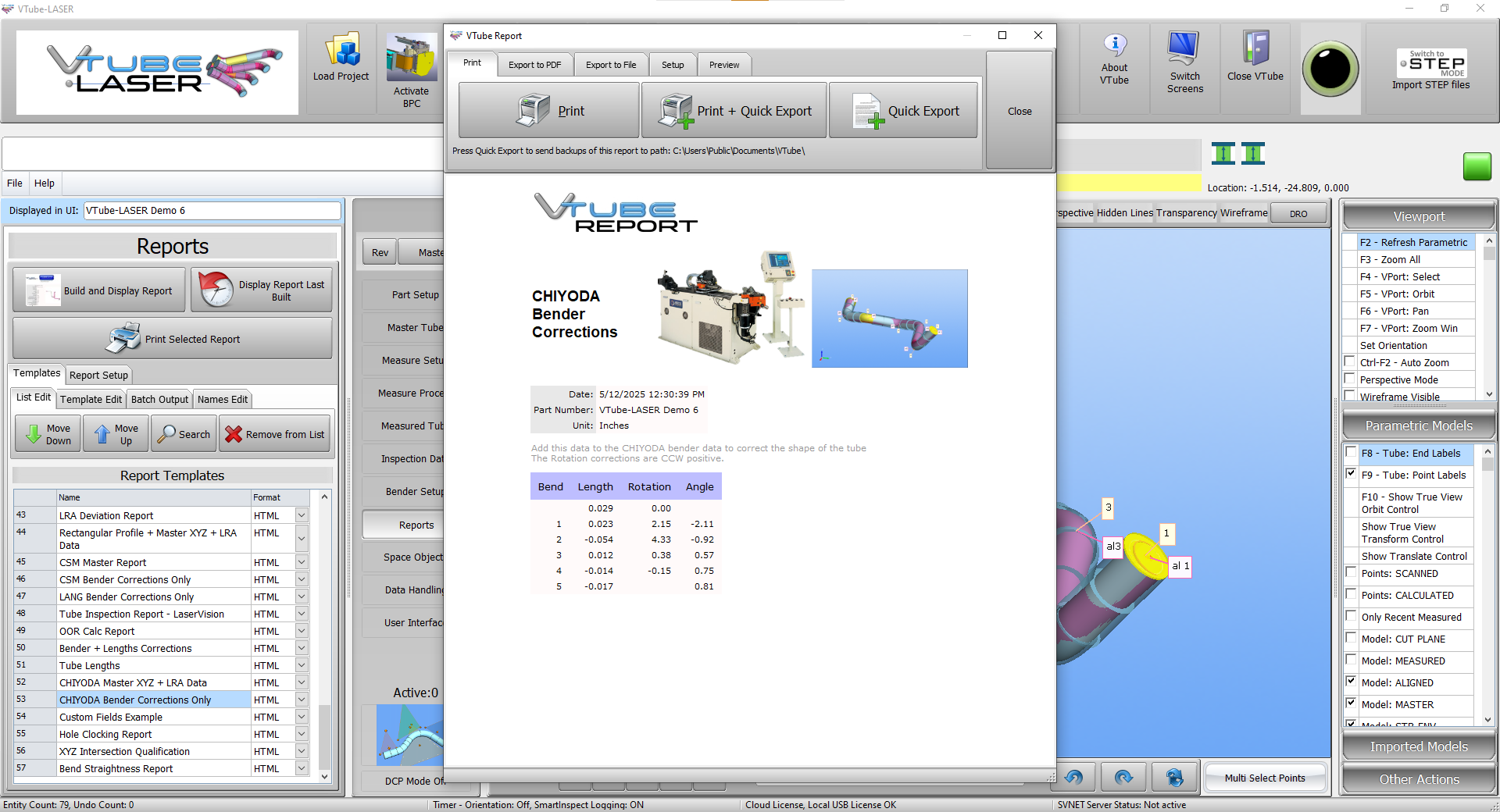

Chiyoda Bender Corrections
