Customizing VTube-LASER Settings


When VTube-LASER is installed, it comes with standard settings. To customize for your application, please make changes and override the Project Default Settings.


Recommended Changes:

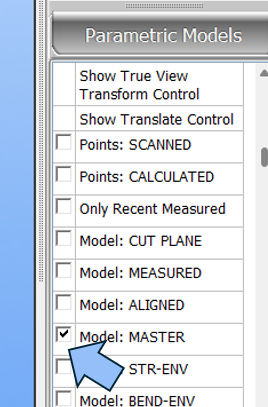

Model MASTER: ON

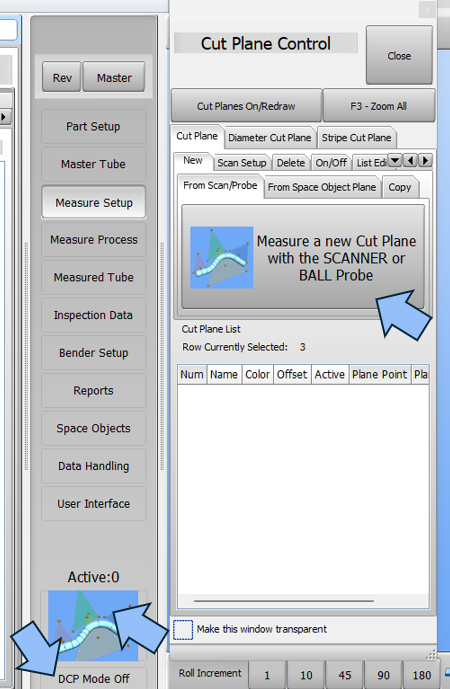

Measure a Cut Plane
  1. Turn off the DCP
  2. Click the BLUE box to enter the Cut Plane Control
  3. "Measure a new Cut Plane..." This can be done with the Probe or Laser. If you are using the probe, take 3 points on the table and one above the table. If you are using the laser, start on one side of the table and measure toward the other side of the table.
  4. Turn the DCP back on

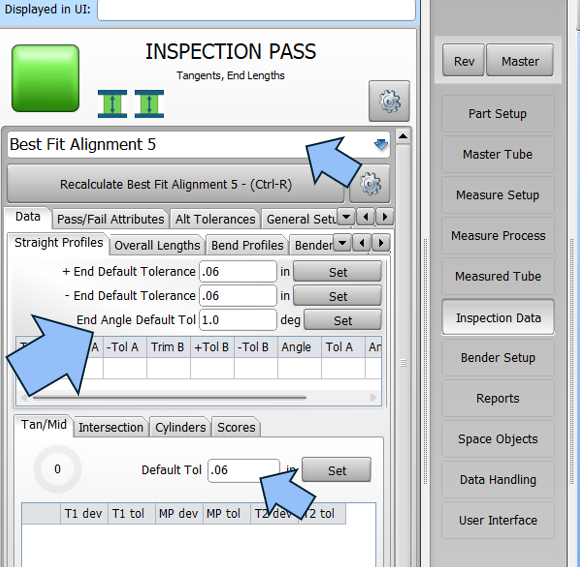

Choose the Alignment you prefer.
Change your Default Tolerances for the Ends and Tan/Mid

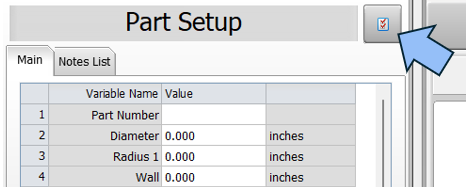

Go to Part Setup and open the toolbox to make any changes to the Part Setup menu

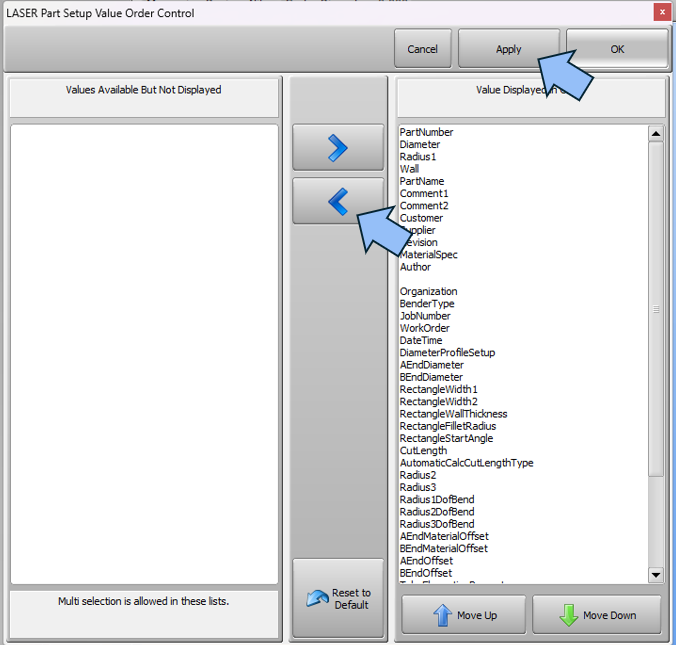

Reorder, or use the arrows to remove Part Setup values you do not want showing up in the Part Setup menu. Press Apply and OK to save the changes.

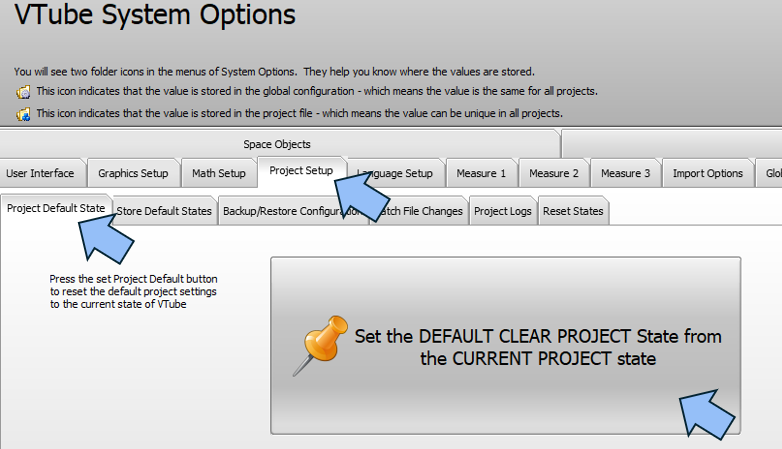

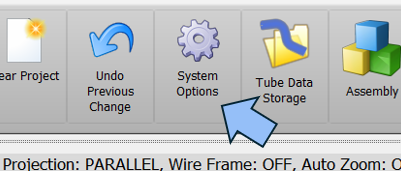

Once you are happy with the changes, go to System Options > Project Setup > Project Default State > Set the DEFAULT CLEAR PROJECT State from the CURRENT PROJECT state.

Note: Be careful with this as whatever you have changed will now become the default state going forward for all projects.

Note: This can always be reset to the default
