VTube-LASER Bend Plane Clock Tool - Locate Positions Around a Bend Plane in Real Time
For use with a Ball Probe
This tool is designed for use with a ball probe. Use the Toggle LASER button to turn off the scanner if it is active.

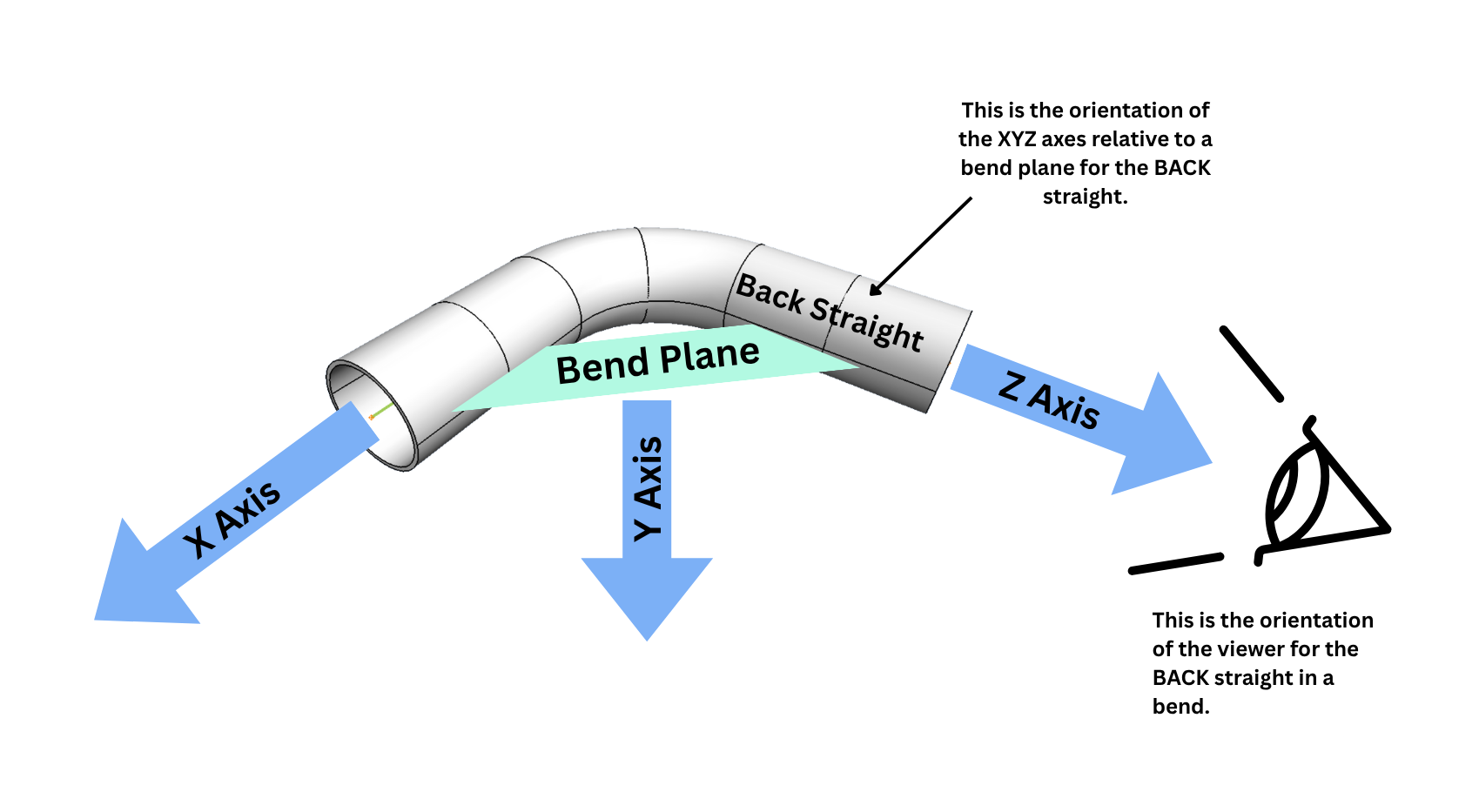

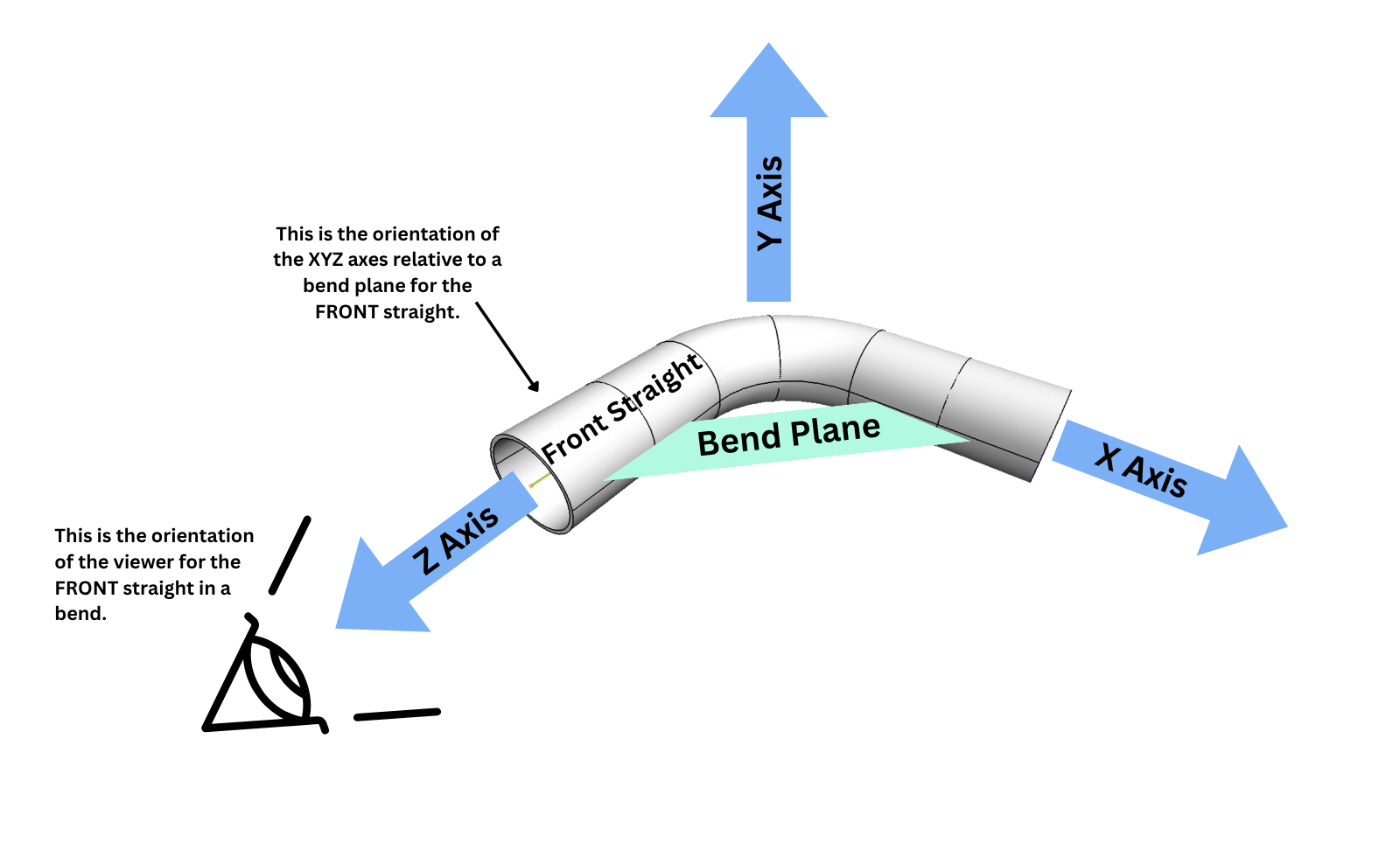

Bend Plane XYZ Orientation for FRONT and BACK Straights
The direction of the XYZ axes are formed based on which straight you are viewing.
- There are two possible viewpoints. Either the operator is looking down the front straight or the back straight.
- Which straight the operator chooses determines the direction of the X, Y, and Z axes in the Tool interface.
![]() | ![]() |
Wall Thickness Calculator

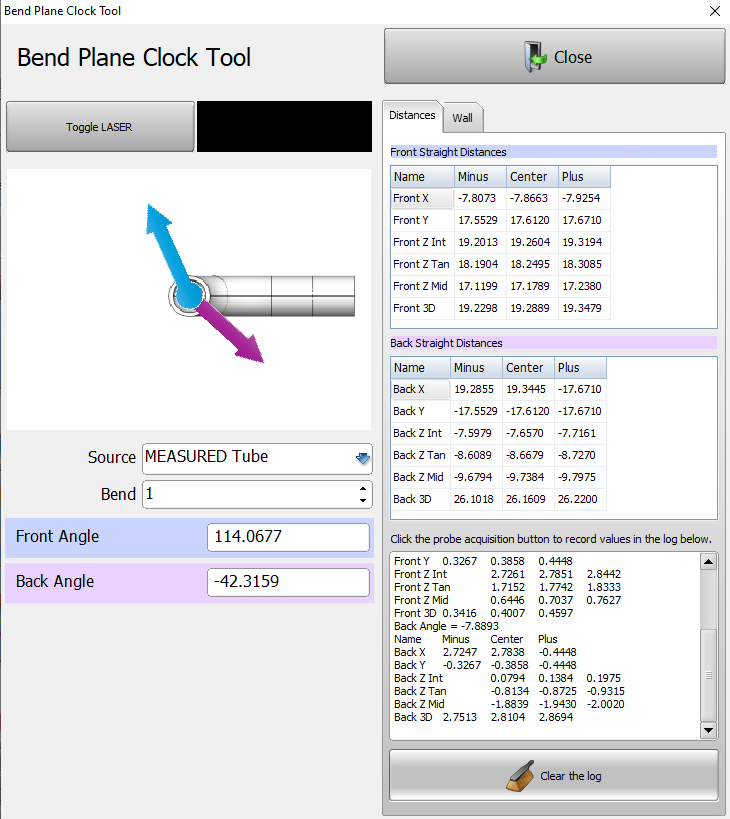

Locate Real Time Positions Around a Bend Plane
With the Bend Plane Clock Tool, VTube-LASER shows real time positions relative to any bend plane.
For example, you can locate the the intersection, tangent point, or midpoint in a Z axis normal the end straight.

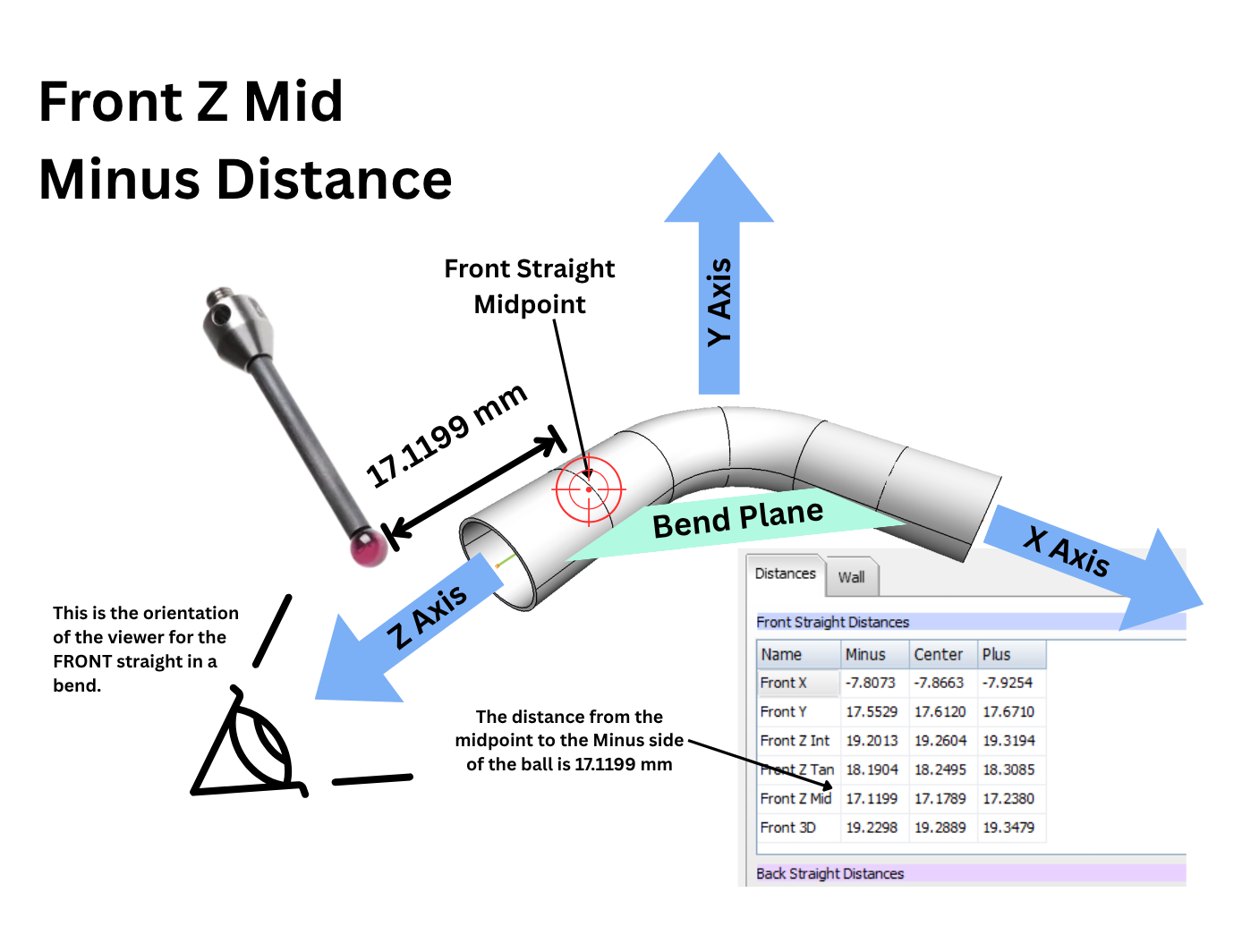

In this image, the probe center is 17.1789 mm closer to the user along the centerline from the midpoint of the front straight. In this image orientation for the front straight , the Z axis moves toward the user out of the screen.
![]() | Visualize the distances like this:![]() |

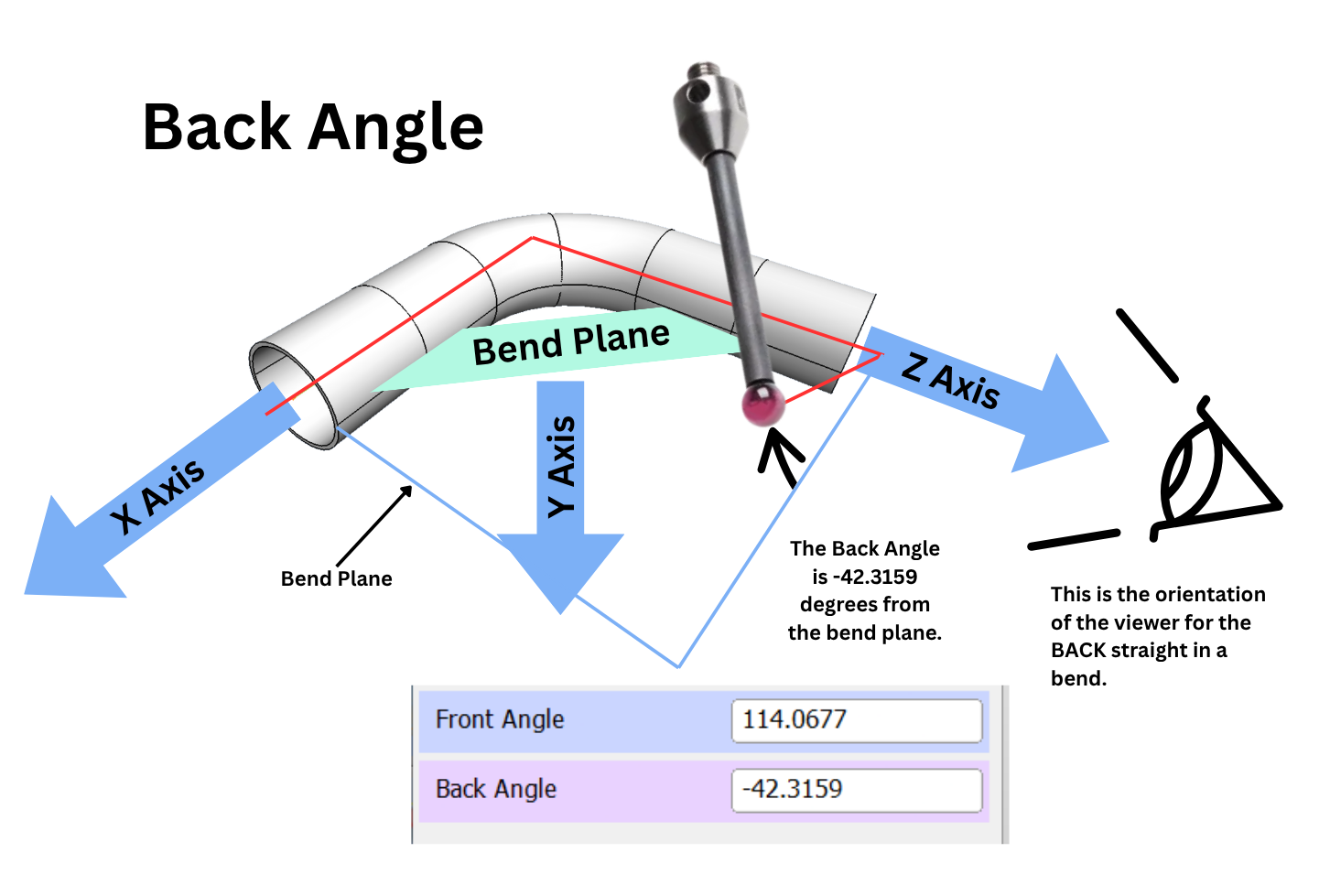

Front and Back Angles

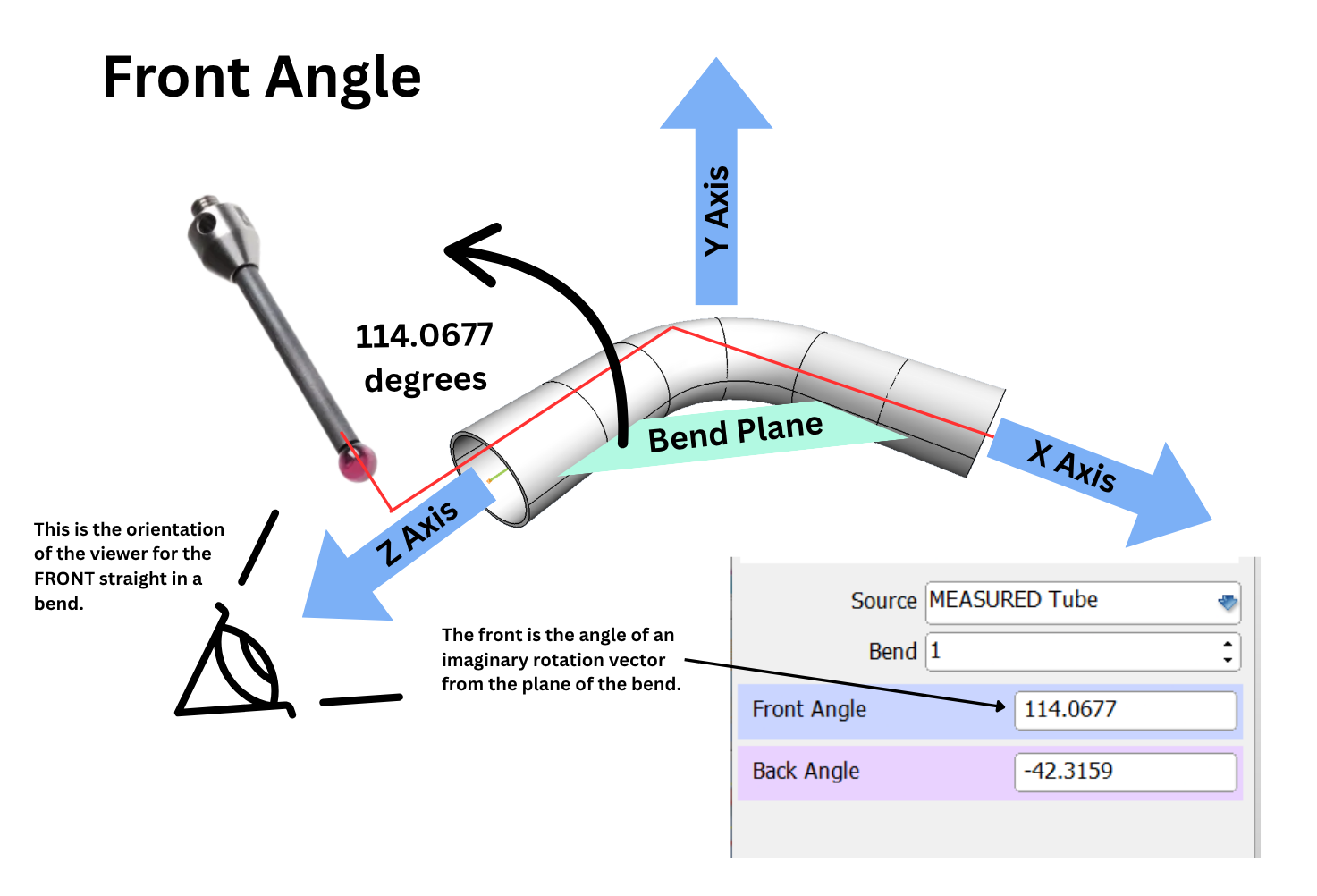

This images show an example FRONT angle of 114.0677 degrees.
The angle is formed from the center of the ball to the centerline. The shaft angle of the ball probe does not affect the angle.

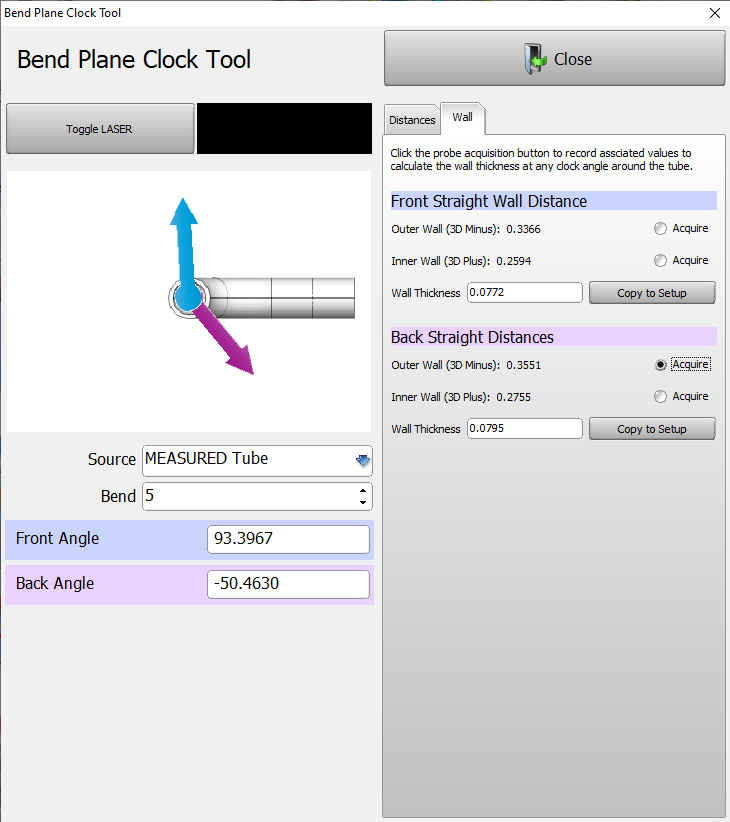

Measure Wall Thickness
It is also possible to measure the wall thickness with the Wall tab menu.
Before pressing the acquisition button, press the appropriate Acquire radio button. Two values are measured per straight.
LOG Report Output
The Bend Plane Clock Tool LOG can be output in a report.
