Managing MOXA NPort Serial Device Servers with a Web Browser

1 - General Information About the MOXA NPort Serial Device Server

See this page to read how MOXA NPort devices work: https://advancedtubular.helpsite.com/articles/124264-how-moxa-nport-serial-device-servers-work-in-benderlink-ethernet-modules


2 - Using the Web Browser Configuration

Load an Internet browser, type this in the address bar and press Enter:  http://192.168.126.254

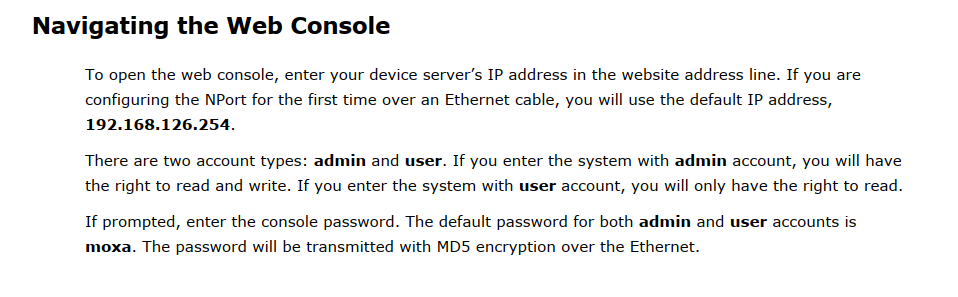

See page 50 (and following) in the manual for how to use a web browser to configure an NPort. This information is on page 50:

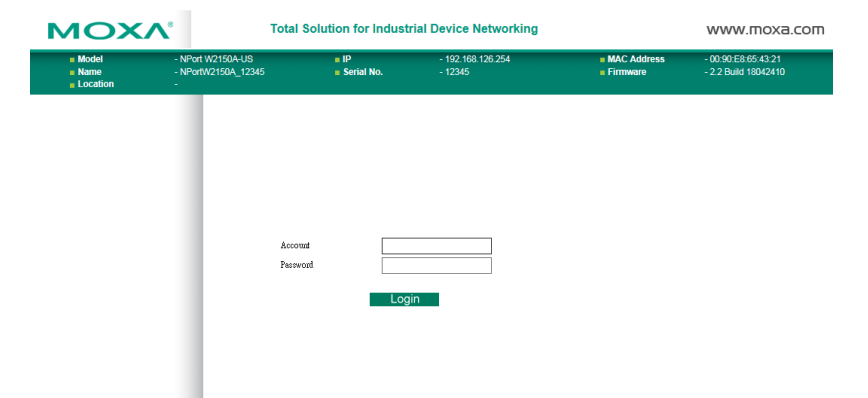

The default user name is admin. The default password is moxa.  Enter that information in Account and Password on this page and press Login.



Follow the instructions starting on page 51 to set up the NPort.

If you have questions, please contact an Advanced Tubular Technologies technician at support@advancedtubular.com.


4 - A Windows Driver Installation Is Required

To use the NPort with VTube-LASER, you will need to install and use the NPort driver one time inside the Windows computer using the steps on this page: https://advancedtubular.helpsite.com/articles/121177-how-to-install-a-moxa-nport-device-driver-in-a-windows-computer
